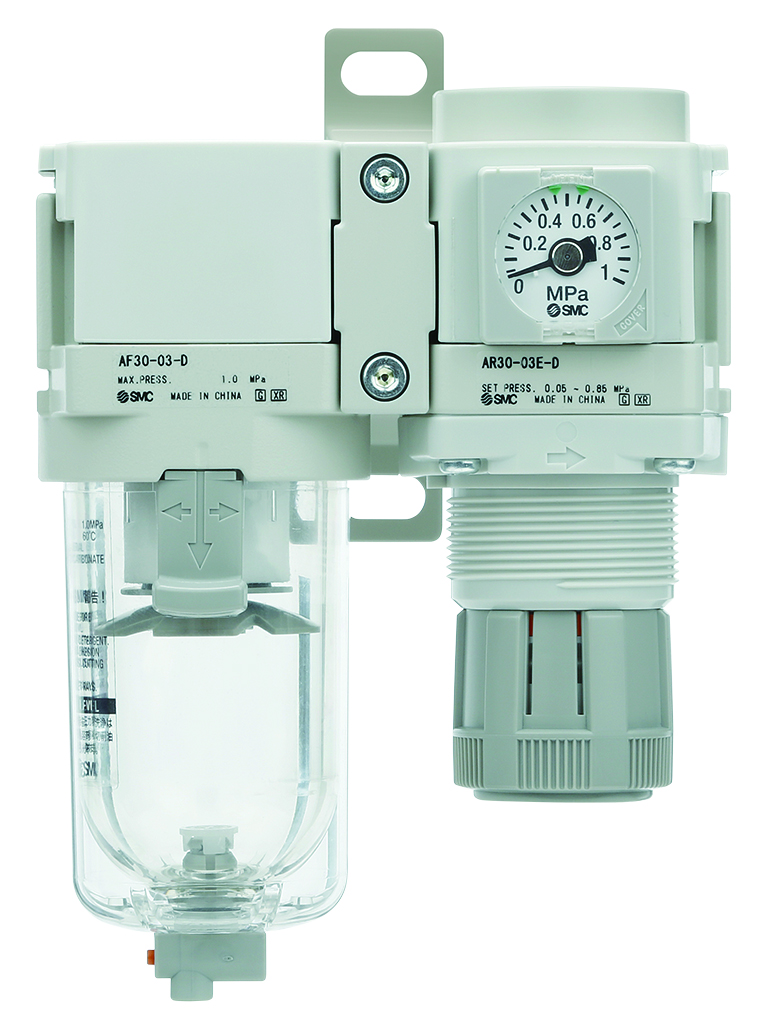

AC30B-F03E-D
Product number:
AC30B-F03E-D
Product information "AC30B-F03E-D"
• Port sizes 1/8, 1/4, 3/8, 1/2, 3/4 and 1
• Modular, compact and lightweight
• Integrated and other selectable pressure gauges
• Many attachments available
Documents
Product features
| Ablass manuell: | Ja |
|---|---|
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 3/8 |
| Betriebsdruck max.: | 1 MPa |
| Connection: | G 3/8 |
| Druckeinstellbereich max.: | 0.85 MPa |
| Druckeinstellbereich min.: | 0.05 MPa |
| Druckluft: | Ja |
| Durchfluss max.: | 3200 l/min |
| Durchfluss min.: | 40 l/min |
| Filterfeinheit: | 5 µm |
| Filter fineness: | 5 µm |
| Filterschale aus Polycarbonat: | Ja |
| Flow rate max.: | 3200 l/min |
| Flow rate min.: | 40 l/min |
| Manometeranschluss: | mit Manometer |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Pressure gauge connection: | with gauge |
| Pressure setting range max.: | 0.85 MPa |
| Pressure setting range min.: | 0.05 MPa |
| Series: | AC#B-D |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| manual drain: | yes |
| polycarbonate bowl: | yes |
