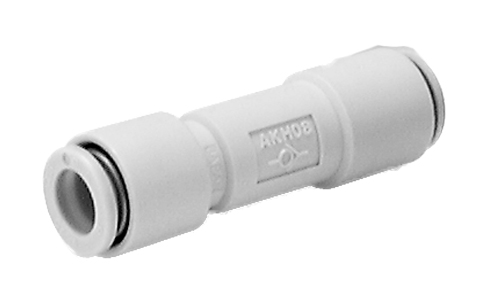

AKH06-00
Product number:
AKH06-00
Product information "AKH06-00"
• Applicable Tubing O.D.: Ø 4 mm to Ø 12 mm
• Ambient and fluid temperatures: -5 bis 60 °C
• Operating pressure range: -100 kPa to 1 Mpa
• Cracking pressure: 0.005 Mpa
• Applicable tubing material: Nylon, Softnylon, Polyurethane
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | Steckverbindung 6mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | Plug-in connection 6mm |
| Druckluft: | Ja |
| Durchfluss max.: | 356 l/min |
| Flow rate max.: | 356 l/min |
| Material: | PBT / POM |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Series: | AKH |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| for pipe installation: | yes |
| für Leitungseinbau: | Ja |
| material: | PBT / POM |
