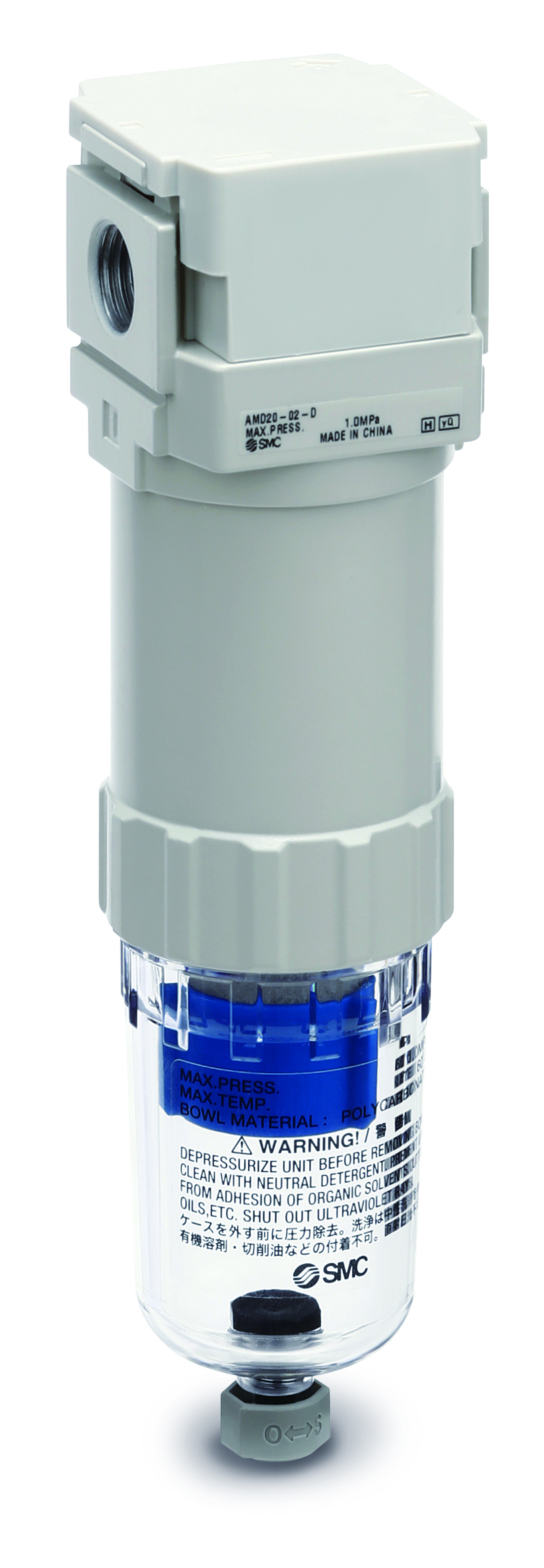

AMD20-F02-D
Product number:
AMD20-F02-D
Product information "AMD20-F02-D"
• Medium: Compressed air
• Max. operating pressure: 1.0 Mpa
• Ambient and medium temperature: 5 to 60 °C
• Filter fineness: 0.01 μm (filtration degree: 99.9%)
• Residual oil content at outlet: max. 0.1 mg/m3
• Filter element replacement: 2 years or when pressure drop reaches 0.1 Mpa
• Connection size: 1/8, 1/4, 3/8, 3/4, 1
Product features
| Ablass manuell: | Ja |
|---|---|
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 1/4 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 1/4 |
| Druckluft: | Ja |
| Durchfluss max.: | 300 l/min |
| Filterfeinheit: | 0.01 µm |
| Filter fineness: | 0.01 µm |
| Filterschale aus Polycarbonat: | Ja |
| Flow rate max.: | 300 l/min |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Series: | AMD20-60 |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| manual drain: | yes |
| polycarbonate bowl: | yes |
