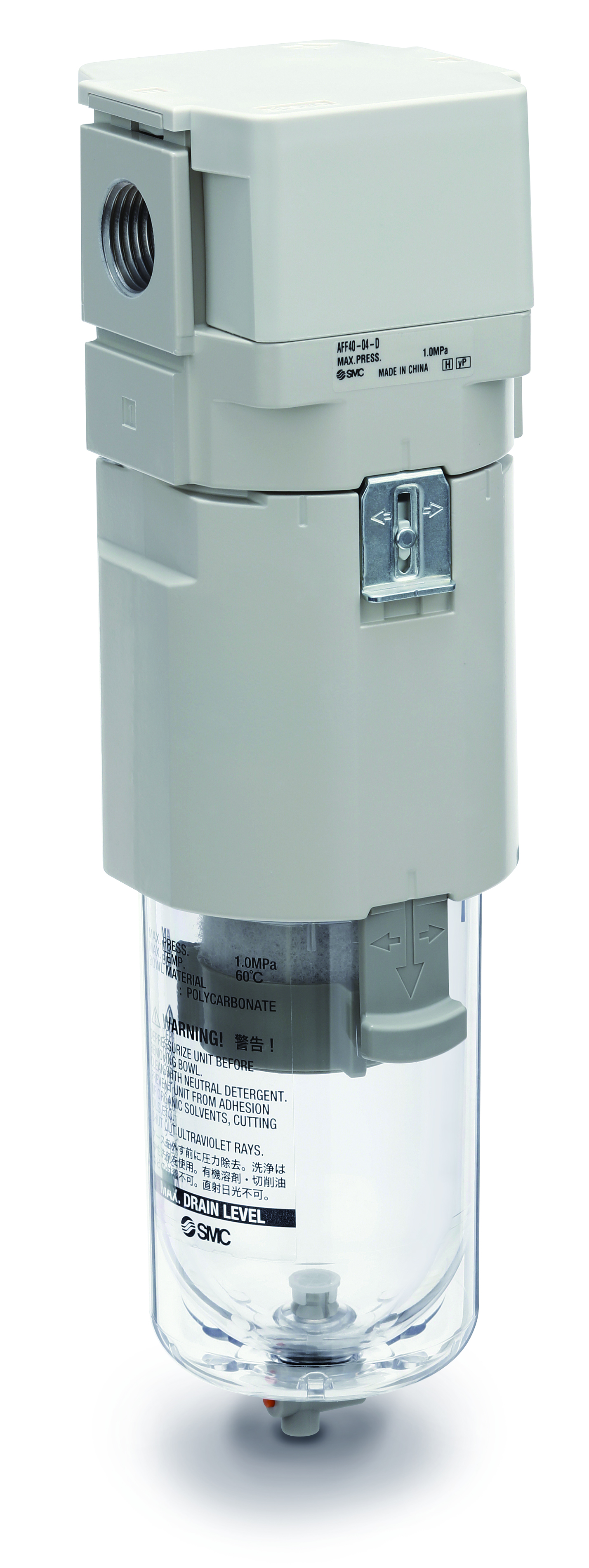

AMK50-F10-D
Product number:
AMK50-F10-D
Product information "AMK50-F10-D"
• Medium: Compressed air
• Operating pressure range: 0.05 to 1.0 Mpa
• Ambient and medium temperature: 5 to 60 °C
• Residual oil content at outlet: max. 0.003 mg/m3 or less
• Connection size: 1/8, 1/4, 3/8, 3/4, 1
• Compressed air purity class: ISO 8573-1: 2010 [ 1 : 4 : 1 ]
Documents
Product features
| Ablass manuell: | Ja |
|---|---|
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 1 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 1 |
| Druckluft: | Ja |
| Durchfluss max.: | 2200 l/min |
| Filterschale aus Edelstahl: | Ja |
| Flow rate max.: | 2200 l/min |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Series: | AMK20-60-D |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| manual drain: | yes |
| with stainless steel filter bowl: | yes |
