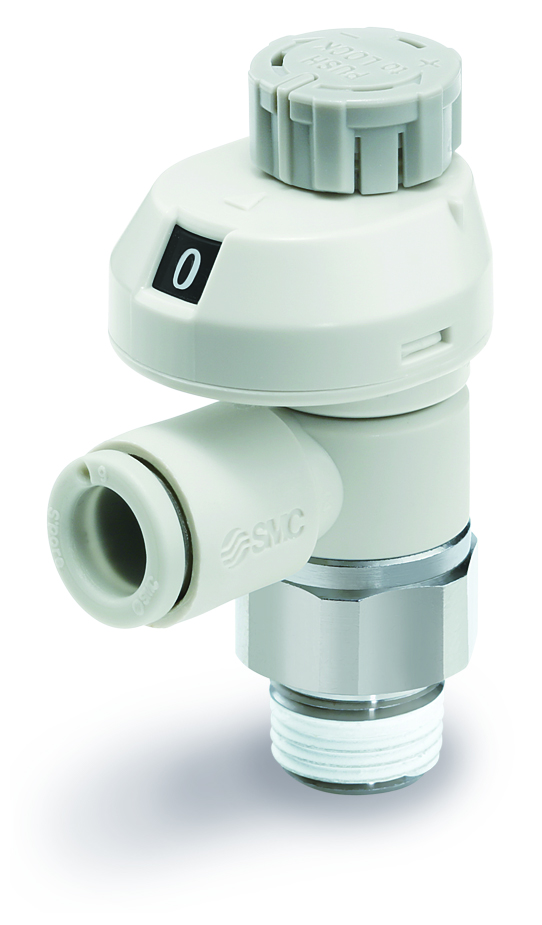

AS1201FSC-M5E-04
Product number:
AS1201FSC-M5E-04
Product information "AS1201FSC-M5E-04"
• Elbow/Universal Type for low cylinder speeds
• Applicable Tubing O.D.: Ø 2 mm to 10mm
• Port Size: M5, 1/8'' bis 1/4''
• Ambient and fluid temperatures: -5 bis 60 °C
• Operating pressure range: 0.1 to 1 Mpa
• Applicable tubing material: Nylon, Soft nylon, Polyurethane, FEP, PFA
Documents
Product features
| 50 bis 150mm/s: | Ja |
|---|---|
| 50 to 150mm/s: | yes |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | M 5, Steckverbindung 4mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | M 5, Plug-in connection 4mm |
| Druckluft: | Ja |
| Material: | Messing vernickelt / PBT |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Series: | AS#FSM/FSC |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| abluftgesteuert: | Ja |
| compressed air: | yes |
| for slow cylinder speed: | yes |
| für langsame Zylindergeschwindigkeit: | Ja |
| material: | brass nickel plated / PBT |
| meter-out: | yes |
| mit Feineinstellung: | Ja |
| with fine adjustment: | yes |
