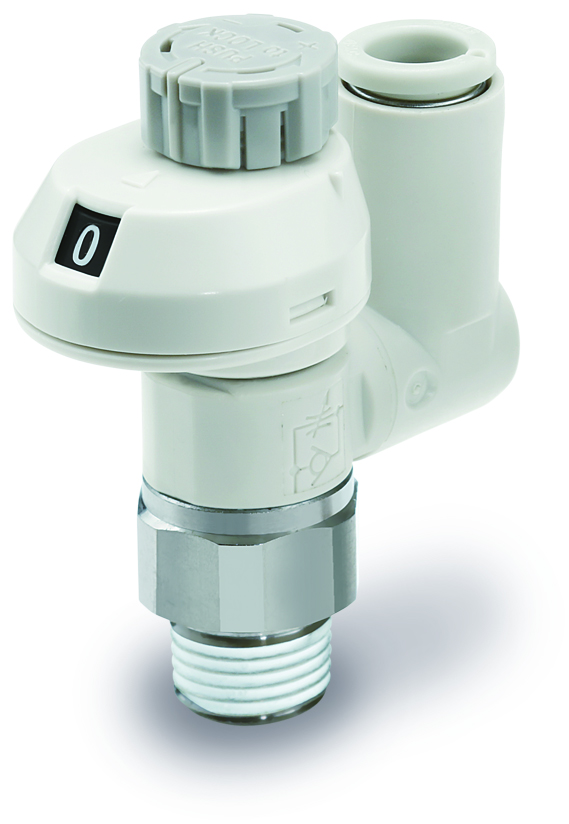

AS4301FSG1-04-10S
Product number:
AS4301FSG1-04-10S
Product information "AS4301FSG1-04-10S"
• Stainless Steel Universal Type
• Applicable Tubing O.D.: Ø 4 to Ø 12 mm
• Port Size: M5 and 1/2''
• Ambient and fluid temperatures: -5 bis 60 °C
• Operating pressure range: 0.1 to 1 Mpa
• Applicable tubing material: Nylon, Soft nylon, Polyurethane, FEP, PFA
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | R 1/2, Steckverbindung 10mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | Plug-in connection 10mm, R 1/2 |
| Druckluft: | Ja |
| Material: | Edelstahl / PBT |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Series: | AS#3#1FSG |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| abluftgesteuert: | Ja |
| compressed air: | yes |
| material: | stainless steel / PBT |
| meter-out: | yes |
