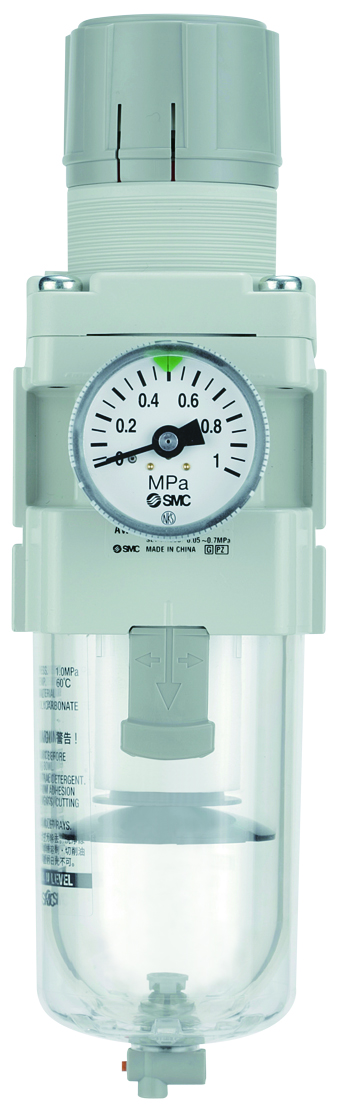

AW20-F01BCE-D
Product number:
AW20-F01BCE-D
Product information "AW20-F01BCE-D"
• ISO 8573-1:2010 compliant
• Port size: 1/8'“ to 1”
• Pressure adjustment range: 0.05 to 0.85 Mpa
• Nominal filtration capacity: 5 µm
• Pressure gauge connection: 1/8''
• Maximum flow rate up to 17600 l/min (ANR 0.7 Mpa)
Product features
| Ablass automatisch: | Ja |
|---|---|
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 1/8 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 1/8 |
| Druckeinstellbereich max.: | 0.85 MPa |
| Druckeinstellbereich min.: | 0.05 MPa |
| Druckluft: | Ja |
| Durchfluss max.: | 2000 l/min |
| Filterfeinheit: | 5 µm |
| Filter fineness: | 5 µm |
| Filterschale aus Polycarbonat: | Ja |
| Flow rate max.: | 2000 l/min |
| Manometeranschluss: | mit Manometer |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Pressure gauge connection: | with gauge |
| Pressure setting range max.: | 0.85 MPa |
| Pressure setting range min.: | 0.05 MPa |
| Series: | AW#-D |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| auto drain: | yes |
| compressed air: | yes |
| mit Sekundärentlüftung: | Ja |
| polycarbonate bowl: | yes |
| with relieving function: | yes |
