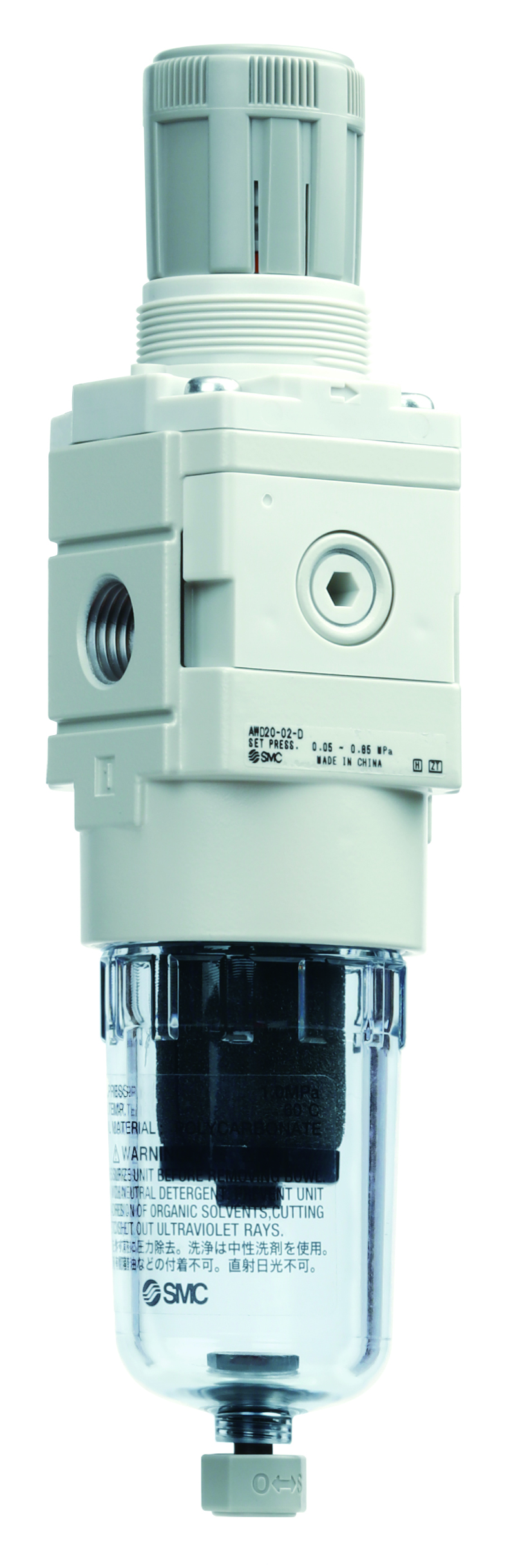

AWD30-F03E-D
Product number:
AWD30-F03E-D
Product information "AWD30-F03E-D"
• Port sizes 1/8, 1/4, 3/8 and 1/2
• Medium: Compressed air
• Ambient and media temperature: -5 to 60 °C
• Set pressure range: 0.05 to 0.85 Mpa
• Filter fineness: 0.01 μm [filtration efficiency: 99.9 %]
• Residual oil content at the outlet: max. 0.1 mg/m3 (before saturation with oil max. 0.01 mg/m3 ≈ 0.008 ppm)
• Compressed air purity class: ISO 8573-1:2010 [ 1 : 4 : 2 ]
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 3/8 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 3/8 |
| Druckeinstellbereich max.: | 0.85 MPa |
| Druckeinstellbereich min.: | 0.05 MPa |
| Druckluft: | Ja |
| Durchfluss max.: | 17000 l/min |
| Filterfeinheit: | 5 µm |
| Filter fineness: | 5 µm |
| Filterschale aus Polycarbonat: | Ja |
| Flow rate max.: | 17000 l/min |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Pressure setting range max.: | 0.85 MPa |
| Pressure setting range min.: | 0.05 MPa |
| Series: | AWD-D |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| mit Sekundärentlüftung: | Ja |
| polycarbonate bowl: | yes |
| with relieving function: | yes |
