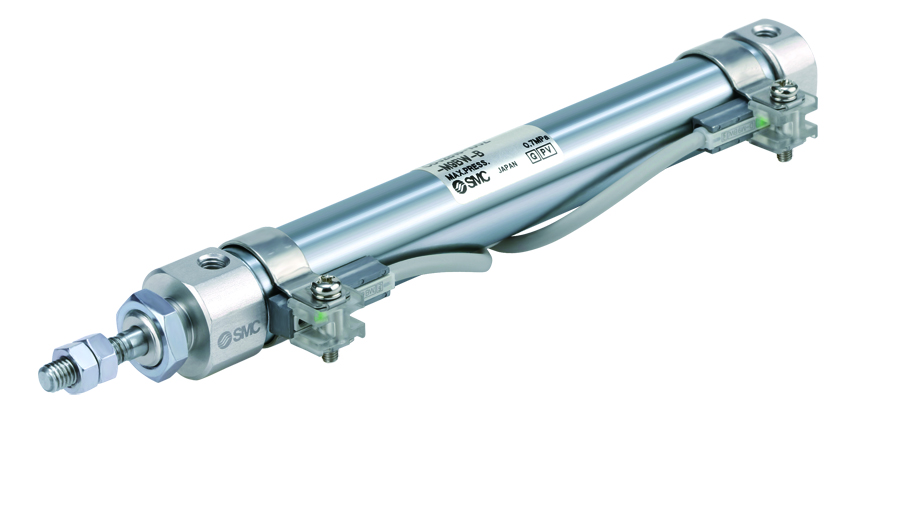

CDJ2B10-10AZ-B
Product number:
CDJ2B10-10AZ-B
Product information "CDJ2B10-10AZ-B"
• Compact and lightweight design for use in confined spaces
• High precision and repeatability for demanding tasks
• Improved stability due to optimized design
• Diverse mounting and stroke options for flexible adaptation to your application
• Ideal for automating assembly, gripping, and positioning tasks
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | M 5 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.06 MPa |
| Connection: | M 5 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 1 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 10 mm |
| Kolbendurchmesser: | 10 mm |
| Kolbenstangengewinde: | M4 |
| Material: | Aluminiumlegierung / Edelstahl |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.06 MPa |
| Piston diameter: | 10 mm |
| Piston rod thread: | M4 |
| Series: | CJ2-Z / CDJ2-Z |
| Speed max.: | 1 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 10 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -10 °C |
| ais cushion: | yes |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| material: | aluminium alloy / stainless steel |
| miniatur: | Ja |
| miniature: | yes |
| mit Magnetring: | Ja |
| pneumatische Dämpfung: | Ja |
| with magnet: | yes |
