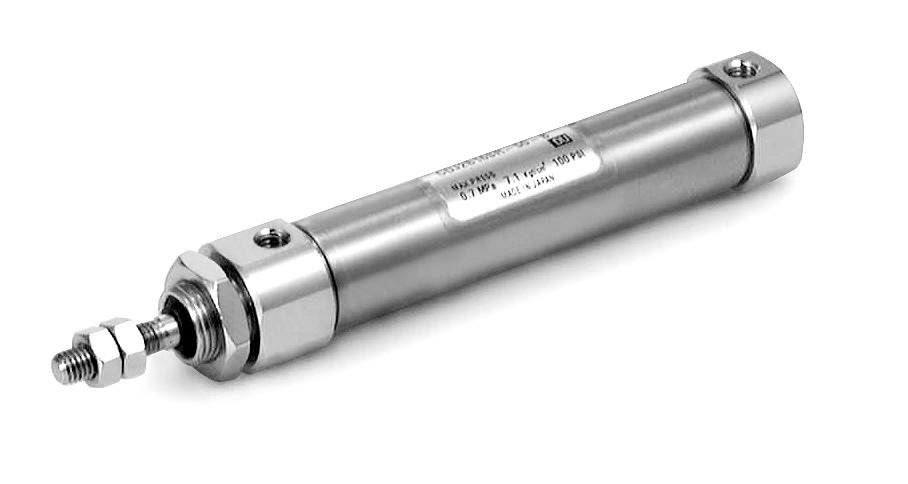

CDJ5B10SV-150-B
Product number:
CDJ5B10SV-150-B
Product information "CDJ5B10SV-150-B"
• Corrosion-resistant stainless steel design for use in hygienic environments
• High reliability and long service life, even when exposed to aggressive chemicals
• Precise, double-acting motion for high process reliability
• Compact design for easy integration into machinery with limited space
• Meets the strict requirements of industries like food, pharma, and medical technology
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | M 5 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.05 MPa |
| Connection: | M 5 |
| Dichtung: | Fluorkautschuk (FKM) |
| Druckluft: | Ja |
| Gasket material: | fluoro rubber (FKM) |
| Geschwindigkeit max.: | 1 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 150 mm |
| Kolbendurchmesser: | 10 mm |
| Kolbenstangengewinde: | M4 |
| Material: | Edelstahl |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.05 MPa |
| Piston diameter: | 10 mm |
| Piston rod thread: | M4 |
| Series: | CJ5-S / CDJ5-S |
| Speed max.: | 1 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 150 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -10 °C |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| material: | stainless steel |
| mit Magnetring: | Ja |
| with magnet: | yes |
