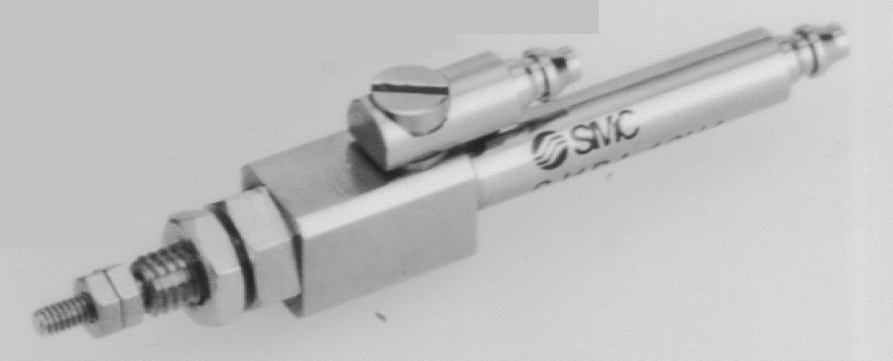

CJ1B4-10U4
Product number:
CJ1B4-10U4
Product information "CJ1B4-10U4"
• Extremely slim and lightweight design for use in the smallest of spaces
• High precision for the accurate movement of small parts
• Robust construction for reliable and long service life
• Versatile mounting options for easy integration into existing systems
• Ideal for applications that require minimal space and maximum convenience
Documents
Product features
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | Steckverbindung 4mm |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.2 MPa |
| Connection: | Plug-in connection 4mm |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 0.5 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 10 mm |
| Kolbendurchmesser: | 4 mm |
| Kolbenstangengewinde: | M2 |
| Material: | Messing vernickelt |
| Media temperature max.: | 70 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 70 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.2 MPa |
| Piston diameter: | 4 mm |
| Piston rod thread: | M2 |
| Series: | CJ1 |
| Speed max.: | 0.5 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 10 mm |
| Umgebungstemperatur max.: | 70 °C |
| Umgebungstemperatur min.: | -10 °C |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| material: | brass nickel plated |
| miniatur: | Ja |
| miniature: | yes |
