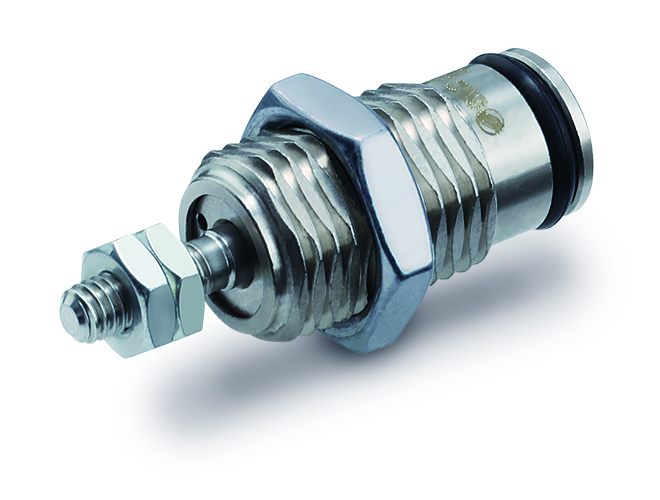

CJPB16-10H6Z-B
Product number:
CJPB16-10H6Z-B
Product information "CJPB16-10H6Z-B"
• Extremely compact and lightweight design for installations with minimal space
• Reduced air consumption with single-acting operation
• Reliable and secure return motion via spring force
• High repeatability for precise processes
• Integrated magnet for easy end-of-stroke sensing
Documents
Product features
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | Steckverbindung 6mm |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.15 MPa |
| Connection: | Plug-in connection 6mm |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 0.5 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 10 mm |
| Kolbendurchmesser: | 16 mm |
| Material: | Messing vernickelt |
| Media temperature max.: | 70 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 70 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.15 MPa |
| Pin-Zylinder: | Ja |
| Pin cylinder: | yes |
| Piston diameter: | 16 mm |
| Schalttafeleinbau: | Ja |
| Series: | CJP-Z |
| Speed max.: | 0.5 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 10 mm |
| Umgebungstemperatur max.: | 70 °C |
| Umgebungstemperatur min.: | -10 °C |
| compressed air: | yes |
| drucklos eingefahren: | Ja |
| einfachwirkend: | Ja |
| material: | brass nickel plated |
| miniatur: | Ja |
| miniature: | yes |
| ohne Kolbenstangengewinde: | Ja |
| panel mount type: | yes |
| single acting: | yes |
| spring return: | yes |
| without piston rod thread: | yes |
