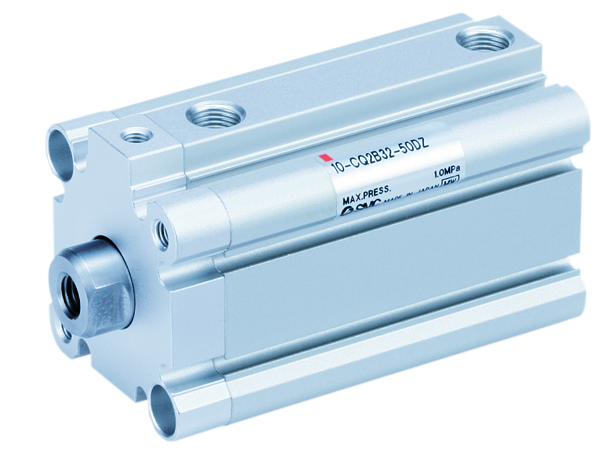

CQ2KA50TF-5DZ
Product number:
CQ2KA50TF-5DZ
Product information "CQ2KA50TF-5DZ"
• Compact and short design for maximum space utilization
• High force in a small body for demanding applications
• Reduced moving mass, which positively impacts cycle time
• Versatile mounting options for easy integration into existing systems
• Global availability and proven reliability
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | G 1/4 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.05 MPa |
| Connection: | G 1/4 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 0.5 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 5 mm |
| Kolbendurchmesser: | 50 mm |
| Kolbenstangengewinde: | M10 |
| Material: | Aluminium-Druckguss |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.05 MPa |
| Piston diameter: | 50 mm |
| Piston rod thread: | M10 |
| Series: | CQ2 / CDQ2 |
| Speed max.: | 0.5 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 5 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -10 °C |
| compact: | yes |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| kompakt: | Ja |
| material: | aluminium die-cast |
| mit Gewindebohrung: | Ja |
| non rotating: | yes |
| verdrehgesichert: | Ja |
| with both ends tapped: | yes |
