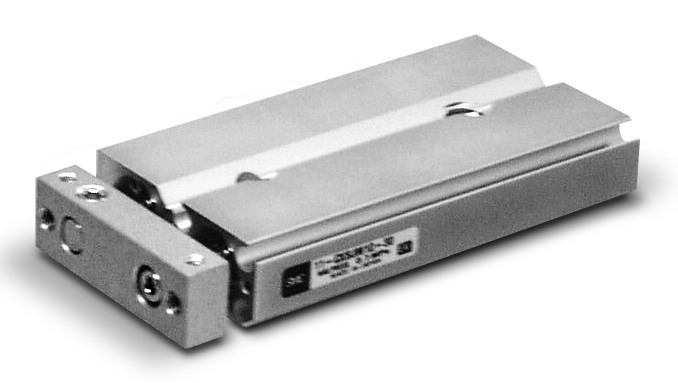

CXSJM20-10
Product number:
CXSJM20-10
Product information "CXSJM20-10"
• High non-rotating accuracy thanks to dual-rod guidance
• Double the thrust force in a compact and lightweight body
• High repeatability for precise pick-and-place tasks
• Easy mounting with flexible fastening options
• Ideal for use on robots and in applications with confined spaces
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | M 5 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.05 MPa |
| Connection: | M 5 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Druckluft gefiltert: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 0.7 m/s |
| Geschwindigkeit min.: | 0.03 m/s |
| Hub: | 10 mm |
| Kolbendurchmesser: | 20 mm |
| Material: | Aluminiumlegierung |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.05 MPa |
| Piston diameter: | 20 mm |
| Series: | CXSJ |
| Speed max.: | 0.7 m/s |
| Speed min.: | 0.03 m/s |
| Stroke: | 10 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -10 °C |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| material: | aluminium alloy |
| mit Doppelkolben: | Ja |
| mit Gleitführung: | Ja |
| mit Magnetring: | Ja |
| non rotating: | yes |
| prefiltered: | yes |
| verdrehgesichert: | Ja |
| with dual-rod: | yes |
| with magnet: | yes |
| with slide bearing: | yes |
