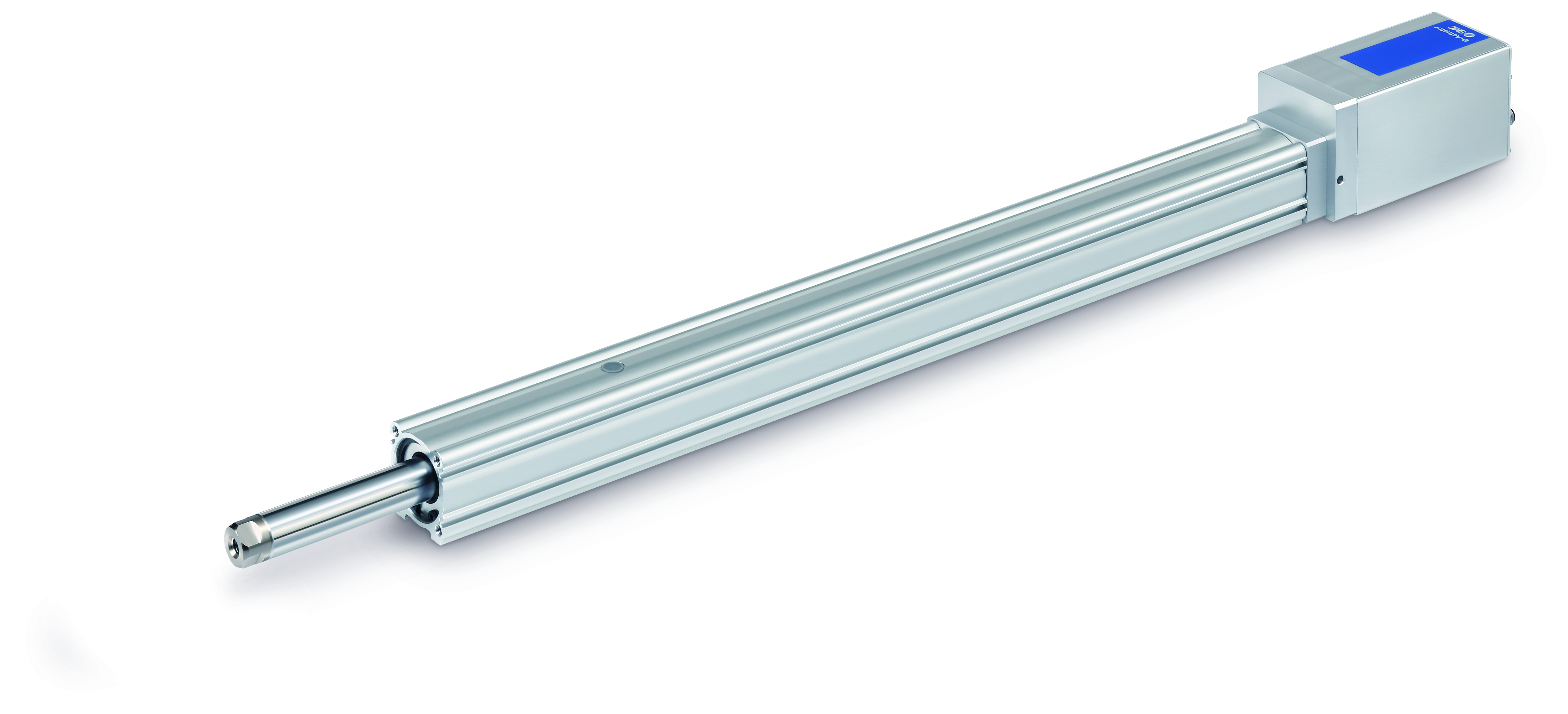

EQY25DHB-100F-B6
Product number:
EQY25DHB-100F-B6
Product information "EQY25DHB-100F-B6"
• Body size: 16, 25 and 32 mm
• Ball screw actuation type
• Stroke: 30 to 500 mm
• Horizontal work load: up to 100 kg
• Vertical work load: up to 46 kg
• Speed: up to 900 mm/s
• Horizontal acceleration: up to 10000 mm/s²
• Vertical acceleration: up to 5000 mm/s²
• Hochleistungs-Schrittmotor 24 VDC
• Batterieloser Absolutwert Encoder
• M12 connectors
Product features
| Acceleration/deceleration horizontal max.: | 10000 mm/s² |
|---|---|
| Acceleration/deceleration vertical max. flow rate: | 5000 mm/s² |
| Ambient temperature max.: | 40 °C |
| Ambient temperature min.: | 5 °C |
| Antriebsspindel Steigung: | 6 mm |
| Baugrösse: | 25 |
| Beschleunigung/Verzögerung horizontal max.: | 10000 mm/s² |
| Beschleunigung/Verzögerung vertikal max.: | 5000 mm/s² |
| Drive spindle Pitch: | 6 mm |
| Encoder Typ: | batterielos absolutwert |
| Encoder type: | batteryless absolut type |
| Flansch vorne: | Ja |
| Führungsart: | Gleitführung |
| Geschwindigkeit max.: | 0.45 m/s |
| Geschwindigkeit min.: | 0.09 m/s |
| Guide type: | plain-bearing guide |
| Hub: | 100 mm |
| Humidity: | Up to 90% relative humidity (no condensation) |
| Integrated Controller: | yes |
| Integrierter Controller: | Ja |
| Leistungsaufnahme: | 86 W |
| Luftfeuchtigkeit: | Bis 90% rel. Luftfeuchtigkeit (keine Kondensation) |
| Max. horizontal payload: | 40 kg |
| Nutzlast horizontal max.: | 40 kg |
| Nutzlast vertikal max.: | 16 kg |
| Parallel I/O (PNP): | Ja |
| Payload vertical max.: | 16 kg |
| Positioniergenauigkeit: | 0.02 mm |
| Positioning accuracy: | 0.02 mm |
| Positioning accuracy Degrees: | 0.02 ° |
| Power consumption: | 86 W |
| Rod flange: | yes |
| Schubkraft: | 238 N |
| Series: | EQY#H |
| Size: | 25 |
| Spannung: | 24 VDC |
| Speed max.: | 0.45 m/s |
| Speed min.: | 0.09 m/s |
| Stroke: | 100 mm |
| Thrust force: | 238 N |
| Umgebungstemperatur max.: | 40 °C |
| Umgebungstemperatur min.: | 5 °C |
| Voltage: | 24 VDC |
| axiale Motor Ausführung: | Ja |
| ball screw: | yes |
| in-line motor type: | yes |
| mit Innengewinde: | Ja |
| mit Kugelumlaufspindel: | Ja |
| mit Schrittmotor: | Ja |
| ohne Motorbremse: | Ja |
| parallel I/O (PNP): | yes |
| with female thread: | yes |
| without lock mechanism: | yes |
| with stepper motor: | yes |
