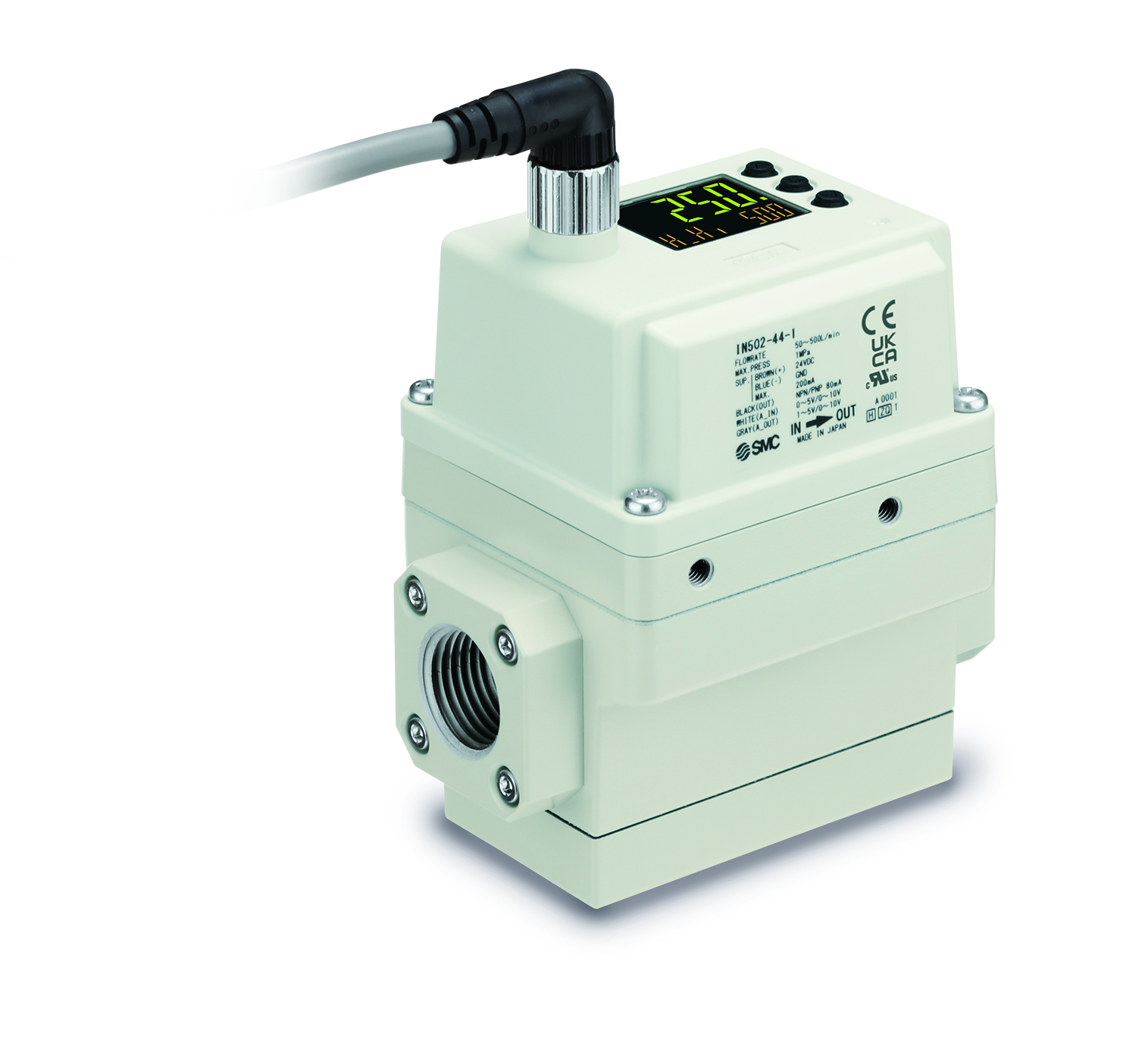

IN502-44-12A
Product number:
IN502-44-12A
Product information "IN502-44-12A"
• Inputs/outputs: IO-Link, NPN/PNP, analogue current/voltage
• Responsiveness: 0.5 s or less
• Flow rate accuracy: ± 5 % F.S.
• 3-screen display
• Greases: grease compatible with low dew point, white Vaseline, grease for food
• Operation at power-off: flow rate zero, flow rate retention
• IO-Link
Product features
| Ambient temperature max.: | 50 °C |
|---|---|
| Anschluss: | M12 Stecker, R 1/2 |
| Betrieb bei Stromausfall: Durchfluss halten: | Ja |
| Betriebsdruck max.: | 0.6 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | M12 connector, R 1/2 |
| Dichtung: | Fluorkautschuk (FKM) |
| Druckluft: | Ja |
| Durchfluss max.: | 500 l/min |
| Durchfluss min.: | 50 l/min |
| Electrical input analogue: | 4 |
| Electrical output analogue: | 4 - 20 mA |
| Electrical output digital: | PNP/NPN |
| Elektrischer Ausgang Digital: | PNP/NPN |
| Elektrischer Ausgang analog: | 4 - 20 mA |
| Elektrischer Eingang analog: | 4 |
| Flow rate max.: | 500 l/min |
| Flow rate min.: | 50 l/min |
| Gasket material: | fluoro rubber (FKM) |
| Grease white vaseline (paint and other coatings): | yes |
| IP Protection class: | IP65 |
| IP Schutzart: | IP65 |
| Leistungsaufnahme: | 5 W |
| Material: | Edelstahl |
| Measuring range max.: | 1 MPa |
| Media temperature max.: | 50 °C |
| Medientemperatur max.: | 50 °C |
| Messbereich max.: | 1 MPa |
| Operating pressure max.: | 0.6 MPa |
| Operating pressure min.: | 0.1 MPa |
| Operation at power-off: flow rate retention: | yes |
| Power consumption: | 5 W |
| Schmierfett weisse Vaseline (Lackieranwendungen): | Ja |
| Series: | IN502 |
| Spannung: | 24 VDC |
| Stickstoff: | Ja |
| Umgebungstemperatur max.: | 50 °C |
| Voltage: | 24 VDC |
| compressed air: | yes |
| material: | stainless steel |
| nitrogen: | yes |
