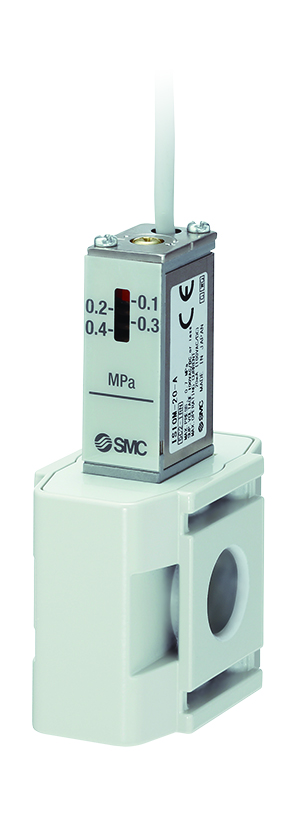

IS10L-50-F06-6L-D
Product number:
IS10L-50-F06-6L-D
Product information "IS10L-50-F06-6L-D"
• Electrical Circiut up to 100 V AC/DC
• Set pressure range 0.1 bis 0.4 Mpa
• Service life 5million cycles
• Can be connected to Modular type F.R.L. units
• Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4 and 1.
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 3/4 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 3/4 |
| Druckluft: | Ja |
| Druckschalter: | Ja |
| IP Protection class: | IP40 |
| IP Schutzart: | IP40 |
| Measuring range max.: | 0.6 MPa |
| Measuring range min.: | 0.1 MPa |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| Messbereich max.: | 0.6 MPa |
| Messbereich min.: | 0.1 MPa |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.1 MPa |
| Series: | IS10L-D |
| Spannung: | 12 - 24 VDC |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| Voltage: | 12 - 24 VDC |
| compressed air: | yes |
| for AC50: | yes |
| for end mounting: | yes |
| für Endmontage: | Ja |
| pressure switch: | yes |
| zu AC50: | Ja |
