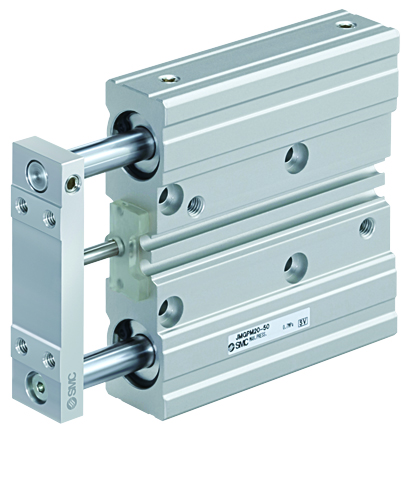

JMGPM20-50
Product number:
JMGPM20-50
Product information "JMGPM20-50"
• High resistance to side loads and high precision
• Compact and lightweight design to reduce moving mass
• Excellent non-rotating accuracy for reliable and exact movements
• Flexible mounting options for easy integration
• Piping is possible from four directions for maximum design flexibility
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | 5 °C |
| Anschluss: | M 5 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.15 MPa |
| Connection: | M 5 |
| Dichtung: | NBR |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 0.3 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 50 mm |
| Kolbendurchmesser: | 20 mm |
| Material: | Aluminiumlegierung |
| Media temperature max.: | 60 °C |
| Media temperature min.: | 5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | 5 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.15 MPa |
| Piston diameter: | 20 mm |
| Series: | JMGP |
| Speed max.: | 0.3 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 50 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | 5 °C |
| compact: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| kompakt: | Ja |
| material: | aluminium alloy |
| mit Gleitführung: | Ja |
| mit Magnetring: | Ja |
| with magnet: | yes |
| with slide bearing: | yes |
