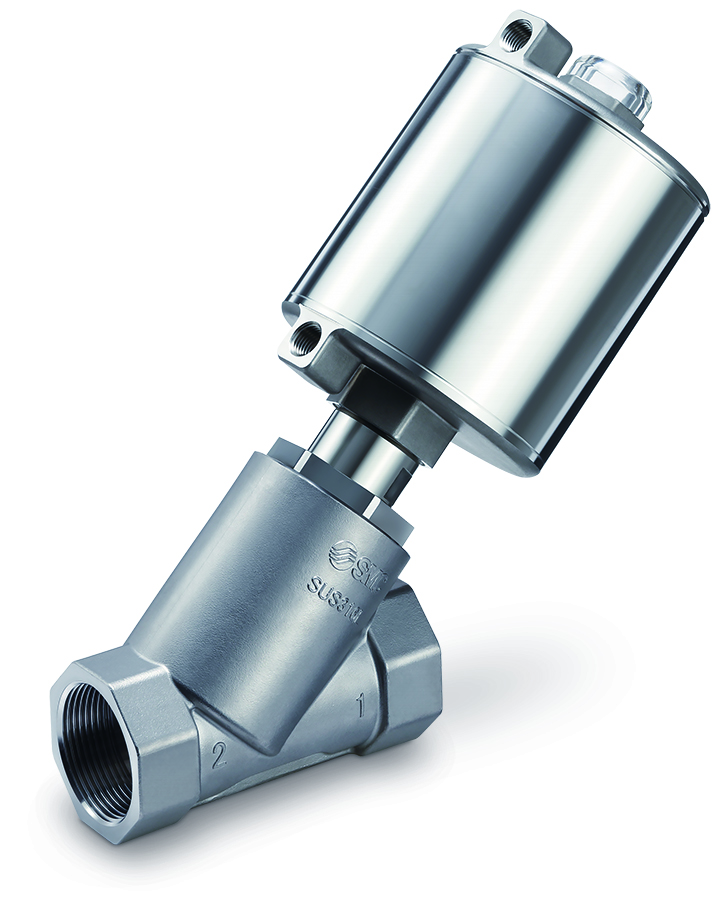

JSB61-ST40AR-6S
Product number:
JSB61-ST40AR-6S
Product information "JSB61-ST40AR-6S"
• Applicable fluid: steam, water, air
• Body material: stainless steel 316L
• Seal material: FKM
• Actuator unit: stainless steel 304
• Orifice diameter: 10 mm to 50 mm
• Port size: 3/8" to 2"
Documents
Product features
| 2/2 way: | yes |
|---|---|
| 2/2-Wege: | Ja |
| Ambient temperature max.: | 60 °C |
| Anschluss: | R 1 1/2 |
| Betriebsdruck max.: | 1 MPa |
| Connection: | R 1 1/2 |
| Dampf: | Ja |
| Dichtung: | Fluorkunststoff |
| Druckluft: | Ja |
| Durchfluss Cv-Wert: | 59.5 gal/min |
| Durchfluss kv-Wert: | 860 Nl/min |
| Flow rate Cv value: | 59.5 gal/min |
| Flow rate Kv: | 51.5 m³/h |
| Flow rate Qn: | 58400 Nl/min |
| Flow rate kv value: | 860 Nl/min |
| Gasket material: | Fluororesin |
| Material: | Edelstahl |
| Media temperature max.: | 183 °C |
| Medientemperatur max.: | 183 °C |
| N.C: | yes |
| N.C.: | Ja |
| Nennweite: | 40 mm |
| Nominal size: | 40 mm |
| Operating pressure max.: | 1 MPa |
| Pilotdruck max.: | 1 MPa |
| Pilotdruck min.: | 0.5 MPa |
| Pilot pressure max.: | 1 MPa |
| Pilot pressure min.: | 0.5 MPa |
| Series: | JSB |
| Umgebungstemperatur max.: | 60 °C |
| Wasser: | Ja |
| compressed air: | yes |
| material: | stainless steel |
| steam: | yes |
| water: | yes |
