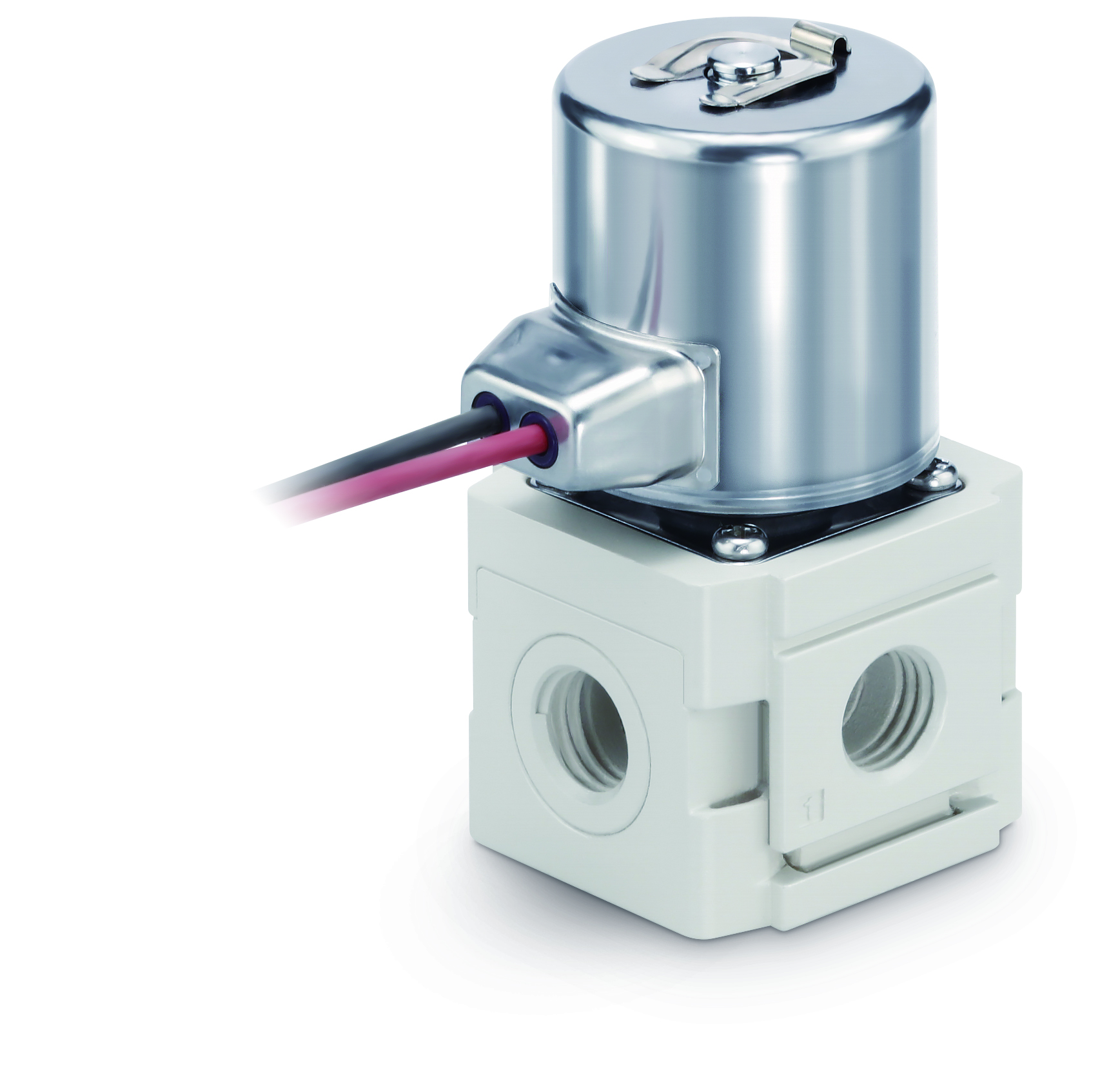

JSXM21-AF302F-5WN-U-D
Product number:
JSXM21-AF302F-5WN-U-D
Product information "JSXM21-AF302F-5WN-U-D"
• Modular connection type for connecting to F.R.L. units
• Flow rate up to 1300 l/min
• Orifice diameter: 3.2 to 4 mm
• Port size: 1/8" to 1/2"
• Power consumption of only 6 watts
• Enclosure: IP67
Product features
| 2/2 way: | yes |
|---|---|
| 2/2-Wege: | Ja |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -20 °C |
| Anschluss: | G 1/4 |
| Baugrösse: | 302 (Nennweite Durchmesser: Ø 3,2 mm; Anschlussgröße: 1/4) |
| Betriebsdruckdifferenz max: | 0.7 MPa |
| Betriebsdruck max.: | 1 MPa |
| Blasluftanschluss oben: | Ja |
| Connection: | G 1/4 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Gasket material: | NBR |
| IP Protection class: | IP67 |
| IP Schutzart: | IP67 |
| Leistungsaufnahme: | 6 W |
| M12 Stecker: | Ja |
| M12 connector: | yes |
| Material: | Aluminiumlegierung / Edelstahl |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| N.C: | yes |
| N.C.: | Ja |
| Operating pressure difference max: | 0.7 MPa |
| Operating pressure max.: | 1 MPa |
| Power consumption: | 6 W |
| Series: | JSXM |
| Size: | 302 (Nennweite Durchmesser: Ø 3,2 mm; Anschlussgröße: 1/4) |
| Spannung: | 24 VDC |
| Spule abwärts: | Ja |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage: | 24 VDC |
| blow port position top: | yes |
| coil orientation downward: | yes |
| compressed air: | yes |
| direct operated: | yes |
| direkt betätigt: | Ja |
| material: | aluminium alloy / stainless steel |
| oil free: | yes |
| ölfrei: | Ja |
