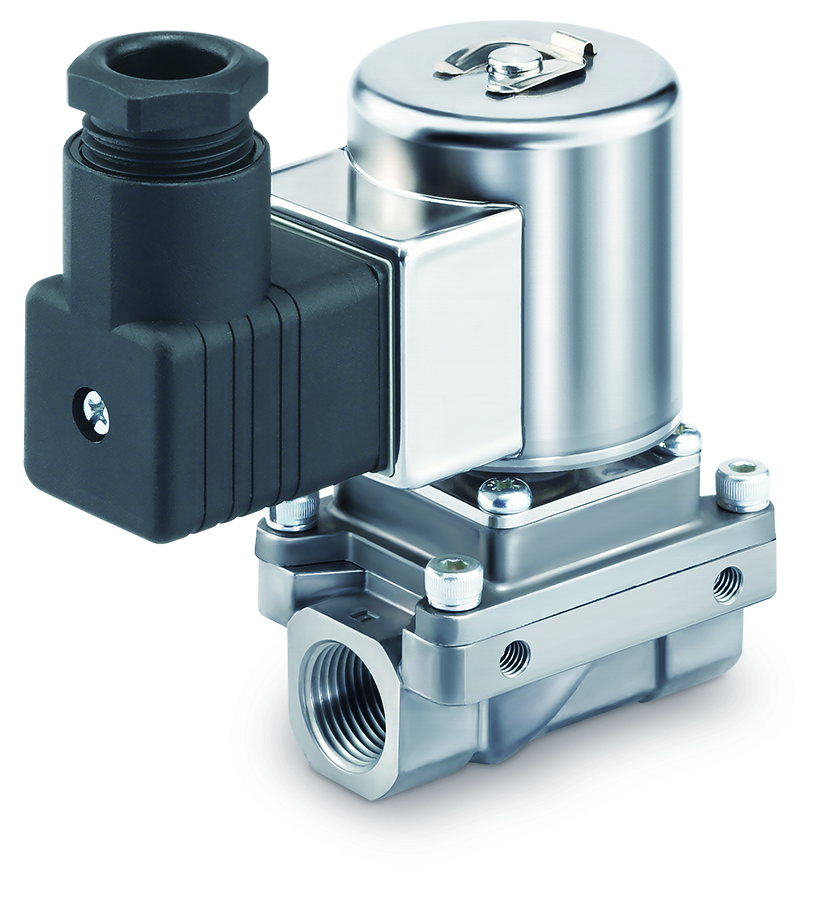

JSXZ31-CE02F-5WN-B
Product number:
JSXZ31-CE02F-5WN-B
Product information "JSXZ31-CE02F-5WN-B"
• Applicable fluid: Air, Water
• Flow rate: Qn max. 9815 Nl/min (Air) kv max. 145 l/min (Water),
• Orifice diameter: 10 mm to 50 mm
• Port size: 1/4" to 1"
• Body material: Brass
• Seal material: EPDM
• Thread type: G-thread
• Coil material: stainless steel
• Enclosure: IP67, (DIN terminal IP65)
Product features
| 2/2 way: | yes |
|---|---|
| 2/2-Wege: | Ja |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -20 °C |
| Anschluss: | G 1/4, M12-Steckverbinder/ohne Kabel (mit Schutzbeschaltung) |
| Baugrösse: | 02 (1/4) |
| Betriebsdruckdifferenz max: | 1 MPa |
| Betriebsdruck max.: | 1 MPa |
| Connection: | G 1/4, M12 connector/Without connector cable (With surge voltage suppressor) |
| Dichtung: | EPDM |
| Druckluft: | Ja |
| Durchfluss Cv-Wert: | 2.4 gal/min |
| Durchfluss kv-Wert: | 27 Nl/min |
| Flow rate Cv value: | 2.4 gal/min |
| Flow rate Kv: | 1.6 m³/h |
| Flow rate Qn: | 2300 Nl/min |
| Flow rate kv value: | 27 Nl/min |
| Gasket material: | EPDM |
| IP Protection class: | IP67 |
| IP Schutzart: | IP67 |
| Leistungsaufnahme: | 8 W |
| M12 Stecker: | Ja |
| M12 connector: | yes |
| Material: | Messing |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| N.C: | yes |
| N.C.: | Ja |
| Nennweite: | 10 mm |
| Nominal size: | 10 mm |
| Operating pressure difference max: | 1 MPa |
| Operating pressure max.: | 1 MPa |
| Power consumption: | 8 W |
| Series: | JSXZ-CE##F-#-#-# |
| Size: | 02 (1/4) |
| Spannung: | 24 VDC |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage: | 24 VDC |
| Wasser: | Ja |
| compressed air: | yes |
| electrically operated: | yes |
| elektrisch betätigt: | Ja |
| material: | brass |
| mit Befestigungselement: | Ja |
| pilotgesteuert: | Ja |
| pilot operated: | yes |
| water: | yes |
| with mounting element: | yes |
