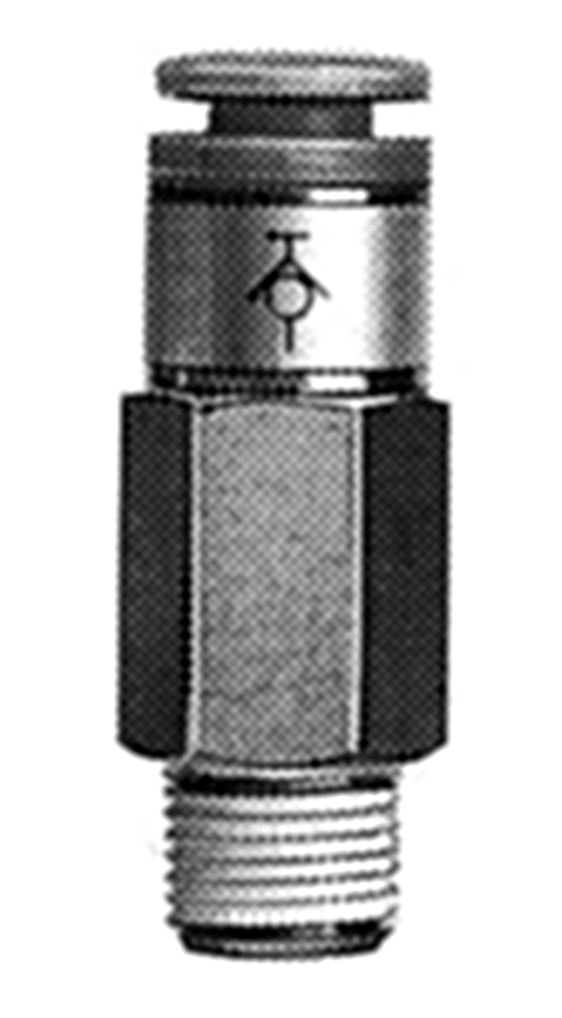

KCH06-01S
Product number:
KCH06-01S
Product information "KCH06-01S"
• Applicable tubing O.D.: Ø 4 to Ø 12 mm
• Applicable port size: M5, 1/8" to 1/2"
• Fluid temperature: Air: -5 bis 60 °C
• Operating pressure range: to 1 Mpa
• Applicable tube material: Nylon, Soft nylon, Polyurethane
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | R 1/8, Steckverbindung 6mm |
| Betriebsdruck max.: | 1 MPa |
| Connection: | Plug-in connection 6mm, R 1/8 |
| Druckluft: | Ja |
| Material: | Messing vernickelt |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Series: | KCH |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| gerade Ausführung: | Ja |
| material: | brass nickel plated |
| mit Rückschlagventil: | Ja |
| straight type: | yes |
| with check valve: | yes |
