KK3P-65N
Product number:
KK3P-65N
Product information "KK3P-65N"

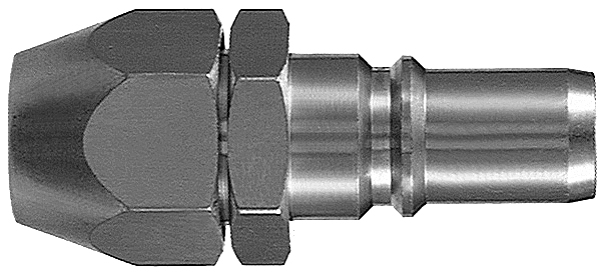

• Plug, With Nut fitting type (for fiber reinforced urethane hose)
• Body size: 1/8, 1/4, 1/2
• Applicable hose-OD-Ø: Ø 8, Ø 9, Ø 10, Ø 12, Ø 12,5, Ø 16
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | Schlauch Innen-Ø6,5mm/Aussen-Ø10mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.09 MPa |
| Connection: | Tube Inside-Ø6,5mm/Outside-Ø10mm |
| Druckluft: | Ja |
| Material: | Messing vernickelt |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.09 MPa |
| Series: | KK#P-#N |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| compressed air: | yes |
| material: | brass nickel plated |
| mit Stecker: | Ja |
| mit Überwurfmutter: | Ja |
| water: | yes |
| with connector: | yes |
| with nut fitting: | yes |
