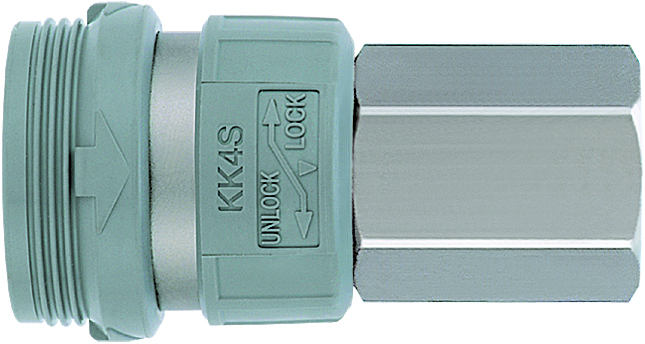

KK4S-03F
Product number:
KK4S-03F
Product information "KK4S-03F"
• Socket, With Female thread type
• Body size: M5, 1/8, 1/4, 1/2.
• Connection port size: M5, Rc1/8, Rc1/4,Rc3/8, Rc1/2."
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | R 3/8 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.02 MPa |
| Connection: | R 3/8 |
| Druckluft: | Ja |
| Material: | Messing vernickelt |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.02 MPa |
| Series: | KK#S-#F |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| compressed air: | yes |
| material: | brass nickel plated |
| mit Buchse: | Ja |
| mit Innengewinde: | Ja |
| water: | yes |
| with female thread: | yes |
| with socket: | yes |
