KK6P-16L
Product number:
KK6P-16L
Product information "KK6P-16L"

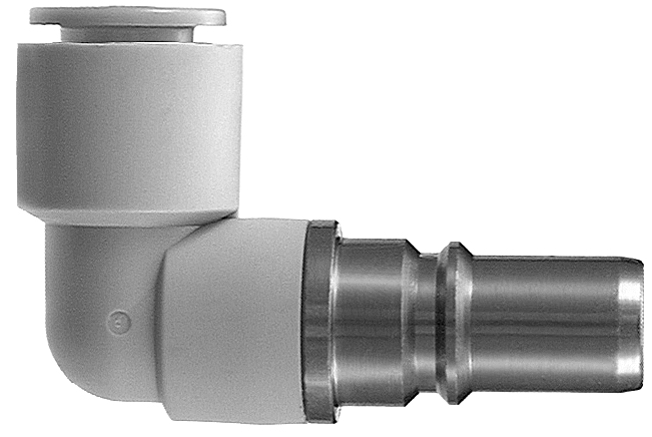

• Plug, Elbow Type with One-touch Fitting.
• Body size: M5, 1/8, 1/4, 1/2.
• Applicable Tubing O.D.: ø3.2, ø4, ø6, ø8, ø10, ø12, ø16.
Documents
Product features
| 90° abgewinkelt: | Ja |
|---|---|
| 90° angular: | yes |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | Steckverbindung 16mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.02 MPa |
| Connection: | Plug-in connection 16mm |
| Druckluft: | Ja |
| Material: | Messing vernickelt |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.02 MPa |
| Series: | KK#P-#L |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| compressed air: | yes |
| material: | brass nickel plated |
| mit Stecker: | Ja |
| mit Steckverbindung: | Ja |
| water: | yes |
| with connector: | yes |
| with one touch fitting: | yes |
