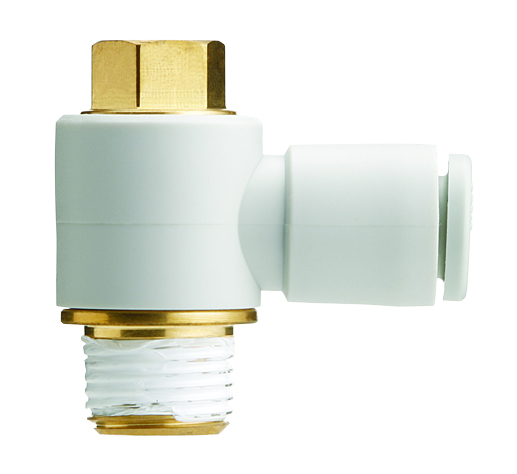

KQ2V04-G01N
Product number:
KQ2V04-G01N
Product information "KQ2V04-G01N"
• Applicable tubing O.D.: Ø 4 to Ø 16 mm
• Applicable port size: M5, 1/8" to 1/2"
• Fluid temperature: Air: -5 bis 60 °C, Water: 0 bis 40 °C
• Operating pressure range: -100 kPa to 1 Mpa
Documents
Product features
| 90° abgewinkelt: | Ja |
|---|---|
| 90° angular: | yes |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 1/8, Steckverbindung 4mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | G 1/8, Plug-in connection 4mm |
| Druckluft: | Ja |
| Material: | Messing vernickelt / PBT |
| Media temperature max.: | 40 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 40 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Series: | KQ2V |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| compressed air: | yes |
| material: | brass nickel plated / PBT |
| water: | yes |
