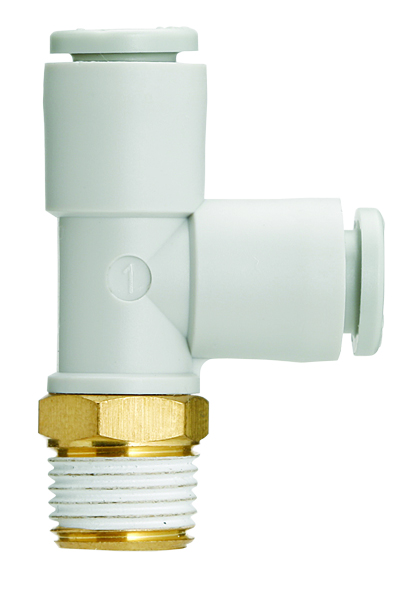

KQ2Y04-02N
Product number:
KQ2Y04-02N
Product information "KQ2Y04-02N"
• Applicable tubing O.D.: Ø 2 to Ø 16 mm
• Applicable port size: M3, M5, M6, 1/8" to 1/2"
• Fluid temperature: Air: -5 bis 60 °C, Water: 0 bis 40 °C
• Operating pressure range: -100 kPa to 1 Mpa
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | R 1/4, Steckverbindung 4mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | Plug-in connection 4mm, R 1/4 |
| Druckluft: | Ja |
| Material: | Messing vernickelt / PBT |
| Media temperature max.: | 40 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 40 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Series: | KQ2Y |
| T-förmig: | Ja |
| T-shape: | yes |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| compressed air: | yes |
| material: | brass nickel plated / PBT |
| water: | yes |
