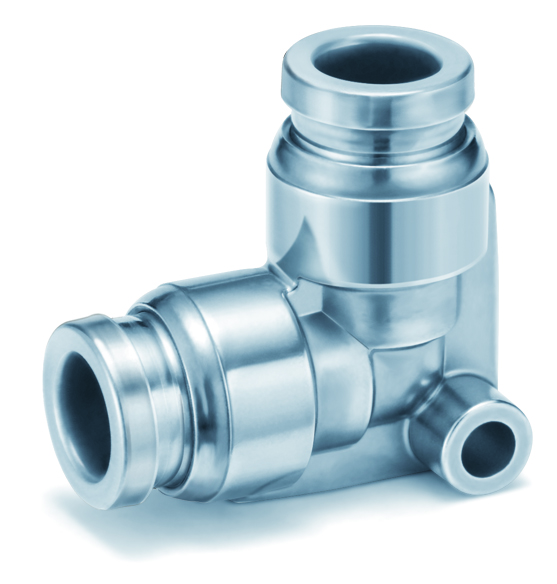

KQB2L10-00-F
Product number:
KQB2L10-00-F
Product information "KQB2L10-00-F"
• Applicable tubing O.D.: Ø 3.2 to Ø 16 mm
• Fluid temperature: -5°C to 150°C
• Applicable tube material: FEP, PFA, Nylon, Soft nylon, Polyurethane, Polyolefin
Documents
Product features
| Ambient temperature max.: | 150 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | Steckverbindung 10mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | Plug-in connection 10mm |
| Dichtung: | Fluorkautschuk (FKM) |
| Druckluft: | Ja |
| FDA-konform: | Ja |
| FDA compliant: | yes |
| Gasket material: | fluoro rubber (FKM) |
| Material: | Messing vernickelt / Edelstahl |
| Media temperature max.: | 150 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 150 °C |
| Medientemperatur min.: | -5 °C |
| Metal: | yes |
| Metall: | Ja |
| NSF-H1 Schmierfett: | Ja |
| NSF-H1 grease: | yes |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Series: | KQB2L-00-F |
| Umgebungstemperatur max.: | 150 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| Winkel Ausführung: | Ja |
| angular style: | yes |
| compressed air: | yes |
| material: | Brass nickel plated / stainless steel |
| water: | yes |
