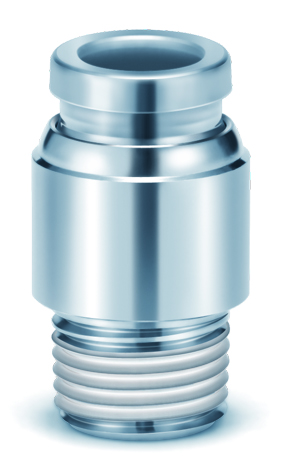

KQB2S04-G01
Product number:
KQB2S04-G01
Product information "KQB2S04-G01"
• Applicable tubing O.D.: Ø 3.2 to Ø 16 mm
• Applicable port size: M5, 1/8" to 1/2"
• Fluid temperature: -5°C to 150°C
• Applicable tube material: FEP, PFA, Nylon, Soft nylon, Polyurethane, Polyolefin
Documents
Product features
| Ambient temperature max.: | 150 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 1/8, Steckverbindung 4mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | G 1/8, Plug-in connection 4mm |
| Dichtung: | Fluorkautschuk (FKM) |
| Druckluft: | Ja |
| Gasket material: | fluoro rubber (FKM) |
| Material: | Messing vernickelt / Edelstahl |
| Media temperature max.: | 150 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 150 °C |
| Medientemperatur min.: | -5 °C |
| Metal: | yes |
| Metall: | Ja |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Series: | KQB2S |
| Umgebungstemperatur max.: | 150 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| compressed air: | yes |
| fettfrei: | Ja |
| gerade Ausführung: | Ja |
| grease-free: | yes |
| material: | Brass nickel plated / stainless steel |
| straight type: | yes |
| water: | yes |
