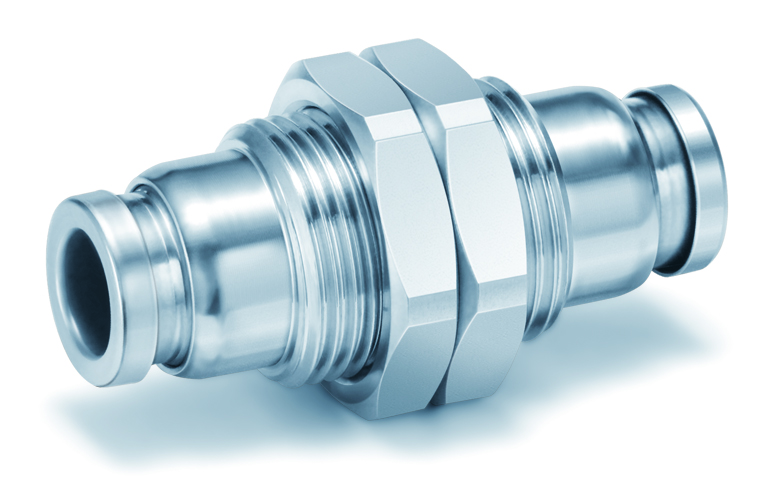

KQG2E08-00
Product number:
KQG2E08-00
Product information "KQG2E08-00"
• Applicable tubing O.D.: Ø 3.2 to Ø 16 mm
• Fluid temperature: -5°C to 150°C
• Applicable tube material: FEP, PFA, Nylon, Soft nylon, Polyurethane, Polyolefin
Documents
Product features
| Ambient temperature max.: | 150 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | Steckverbindung 8mm |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | Plug-in connection 8mm |
| Dampf: | Ja |
| Druckluft: | Ja |
| Material: | Edelstahl |
| Media temperature max.: | 150 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 150 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Schott-Ausführung: | Ja |
| Series: | KQG2E-00 |
| Umgebungstemperatur max.: | 150 °C |
| Umgebungstemperatur min.: | -5 °C |
| Wasser: | Ja |
| bulkhead: | yes |
| compressed air: | yes |
| fettfrei: | Ja |
| gerade Ausführung: | Ja |
| grease-free: | yes |
| material: | stainless steel |
| rostfrei: | Ja |
| stainless: | yes |
| steam: | yes |
| straight type: | yes |
| water: | yes |
