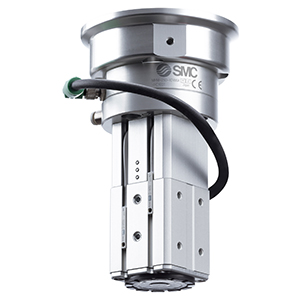

MHM-25D-X7400A-DTP-N
Product number:
MHM-25D-X7400A-DTP-N
Product information "MHM-25D-X7400A-DTP-N"
• Compatible manufacturers: Universal Robots, OMRON Corporation, TECHMAN ROBOT Inc, Mitsubishi Electric Corporation, Yaskawa Electric Corporation and Fanuc Corporation
• Integrated solenoid valve, speed adjustment mechanism, and auto switch
• Operate by simply connecting 1 air supply tube and an electrical wiring M8 or M12 connector
• Holding force can be adjusted
• Compliant with ISO 9409-1-50-4-M6
Product features
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | M8, 8 poliger Stecker, Steckhülse 4mm |
| Baugrösse: | 25 |
| Betriebsdruck max.: | 0.6 MPa |
| Betriebsdruck min.: | 0.2 MPa |
| Compliant with ISO 9409-1-50-4-M6: | yes |
| Connection: | M8, 8-pin (Plug), Plug-in sleeve 4mm |
| Druckluft: | Ja |
| Electrical input digital: | 3 |
| Electrical output digital: | 2x NPN |
| Elektrischer Ausgang Digital: | 2x NPN |
| Elektrischer Eingang digital: | 3 |
| Haltekraft max.: | 200 N |
| Haltekraft min.: | 160 N |
| Holding force max.: | 200 N |
| Holding force min.: | 160 N |
| Konform mit ISO 9409-1-50-4-M6: | Ja |
| Ohne Hauptplatten-Baugruppe: | Ja |
| Operating pressure max.: | 0.6 MPa |
| Operating pressure min.: | 0.2 MPa |
| Series: | MHM-X7400A |
| Size: | 25 |
| Spannung: | 24 VDC |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -10 °C |
| Voltage: | 24 VDC |
| Without main plate assembly: | yes |
| YASKAWA ELECTRC: | Ja, yes |
| compressed air: | yes |
