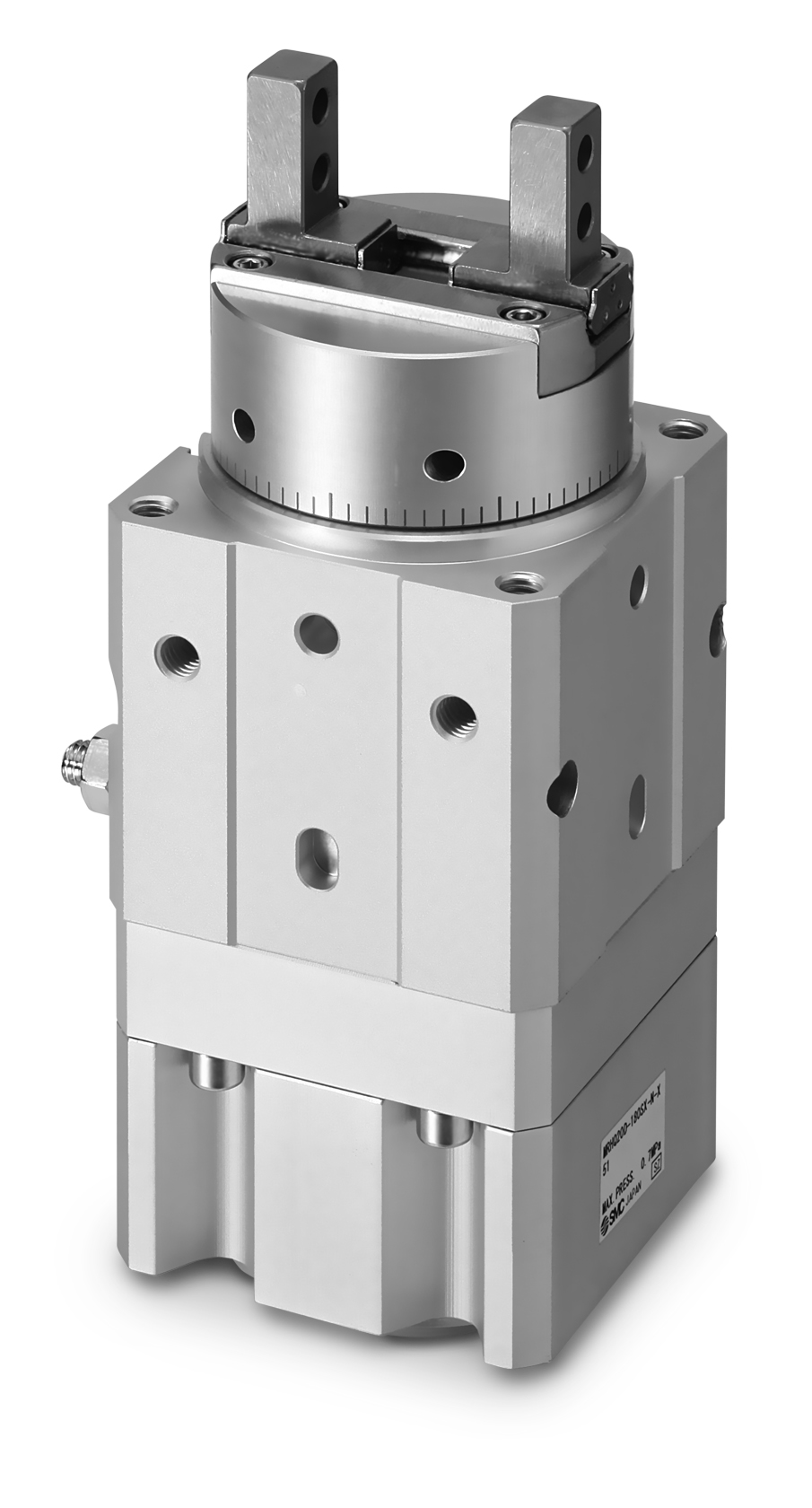

MRHQ25S-90S-N
Product number:
MRHQ25S-90S-N
Product information "MRHQ25S-90S-N"
• Compact integration of gripping and rotating functions in a single unit
• Significant space savings and reduction of tubing and wiring
• High gripping force in a lightweight body for improved dynamics
• Precise positioning and adjustable rotation angles (90° and 180°)
• Flexible installation with five mounting options
Documents
Product features
| 2-Finger: | Ja |
|---|---|
| 2-finger: | yes |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | 5 °C |
| Anschluss: | M 5 |
| Baugrösse: | 25 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.35 MPa |
| Connection: | M 5 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Gasket material: | NBR |
| Haltekraft max.: | 150 N |
| Holding force max.: | 150 N |
| Material: | Aluminiumlegierung / Edelstahl |
| Media temperature max.: | 60 °C |
| Media temperature min.: | 5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | 5 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.35 MPa |
| Schwenkwinkel: | 90 ° |
| Series: | MRHQ |
| Size: | 25 |
| Swivel angle: | 90 ° |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | 5 °C |
| compressed air: | yes |
| drucklos geschlossen: | Ja |
| einfachwirkend: | Ja |
| material: | aluminium alloy / stainless steel |
| mit Drehflügel: | Ja |
| mit Magnetring: | Ja |
| normally closed: | yes |
| parallel: | Ja, yes |
| single acting: | yes |
| with magnet: | yes |
| with vane: | yes |
