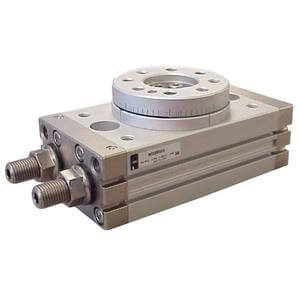

MSQB30A-XF
Product number:
MSQB30A-XF
Product information "MSQB30A-XF"
• High Torque: The double-piston design delivers high power in a compact form.
• Flexible Application: Features an adjustable swivel angle from 0° to 190° and versatile mounting options
• Precise Positioning: The rack-and-pinion design ensures stable and accurate movement.
• Adjustable Stops: Available with either internal stops or external shock absorbers for safe handling of kinetic energy.
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 1/8 |
| Baugrösse: | 30 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 1/8 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Druckluft gefiltert: | Ja |
| Gasket material: | NBR |
| Material: | Aluminiumlegierung |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Schwenkwinkel: | 190 ° |
| Series: | MSQB |
| Size: | 30 |
| Swivel angle: | 190 ° |
| Tischausführung: | Ja |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| material: | aluminium alloy |
| mit Anschlagbolzen: | Ja |
| prefiltered: | yes |
| table style: | yes |
| with stopper: | yes |
