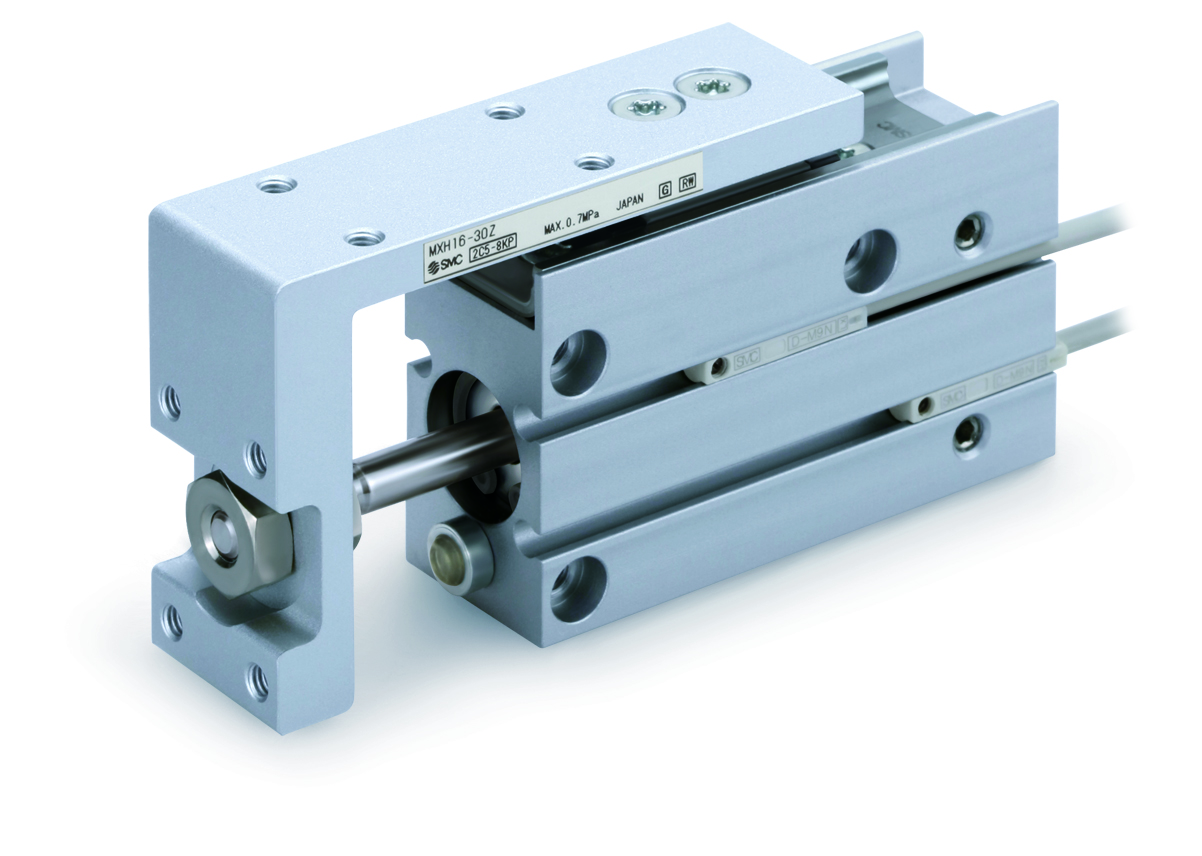

MXH20-25Z
Product number:
MXH20-25Z
Product information "MXH20-25Z"
• Enhanced rigidity and up to 240% higher allowable moment
• Compact and lightweight design for space-saving integration in confined spaces
• High positioning accuracy and improved traveling parallelism
• Flexible mounting options in four directions for versatile applications
• Direct mounting of auto switches for easy system integration
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Anschluss: | M 5 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.05 MPa |
| Connection: | M 5 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Druckluft gefiltert: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 0.5 m/s |
| Geschwindigkeit min.: | 0.05 m/s |
| Hub: | 25 mm |
| Kolbendurchmesser: | 20 mm |
| Material: | Aluminiumlegierung |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.05 MPa |
| Piston diameter: | 20 mm |
| Series: | MXH-Z |
| Speed max.: | 0.5 m/s |
| Speed min.: | 0.05 m/s |
| Stroke: | 25 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -10 °C |
| compact: | yes |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| kompakt: | Ja |
| material: | aluminium alloy |
| mit Kugelumlaufführung: | Ja |
| prefiltered: | yes |
| with ball screw: | yes |
