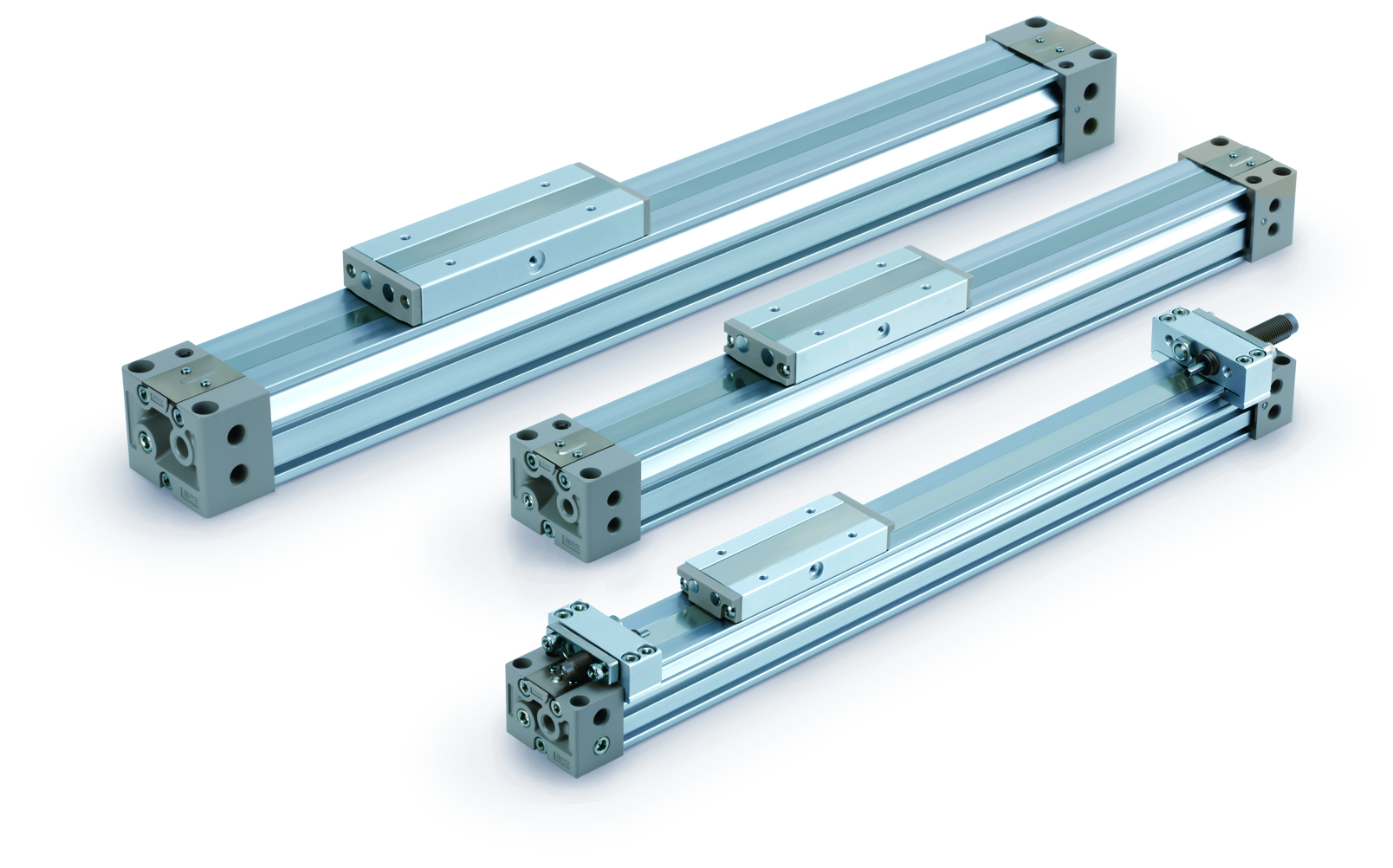

MY1B25TFG-400Z
Product number:
MY1B25TFG-400Z
Product information "MY1B25TFG-400Z"
• Precise end-position repeatability through integrated adjustable bolts or shock absorbers
• Protection of the system and the load by effective absorption of impact energy
• Flexible adaptation to application requirements through selectable cushioning types (e.g., for light or heavy loads)
• Lightweight and compact design for space-saving integration
• Simple and fast installation thanks to improved connections and mounting options
Documents
Product features
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | 5 °C |
| Anschluss: | G 1/8 |
| Betriebsdruck max.: | 0.8 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 1/8 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Druckluft gefiltert: | Ja |
| Gasket material: | NBR |
| Geschwindigkeit max.: | 1 m/s |
| Geschwindigkeit min.: | 0.1 m/s |
| Hub: | 400 mm |
| Kolbendurchmesser: | 25 mm |
| Material: | Aluminiumlegierung |
| Media temperature max.: | 60 °C |
| Media temperature min.: | 5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | 5 °C |
| Operating pressure max.: | 0.8 MPa |
| Operating pressure min.: | 0.1 MPa |
| Piston diameter: | 25 mm |
| Series: | MY1B-Z |
| Speed max.: | 1 m/s |
| Speed min.: | 0.1 m/s |
| Stroke: | 400 mm |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | 5 °C |
| ais cushion: | yes |
| compressed air: | yes |
| doppeltwirkend: | Ja |
| double acting: | yes |
| kolbenstangenlos: | Ja |
| material: | aluminium alloy |
| mit Magnetring: | Ja |
| ohne Führung: | Ja |
| pneumatische Dämpfung: | Ja |
| prefiltered: | yes |
| rodless: | yes |
| with magnet: | yes |
| without guide: | yes |
