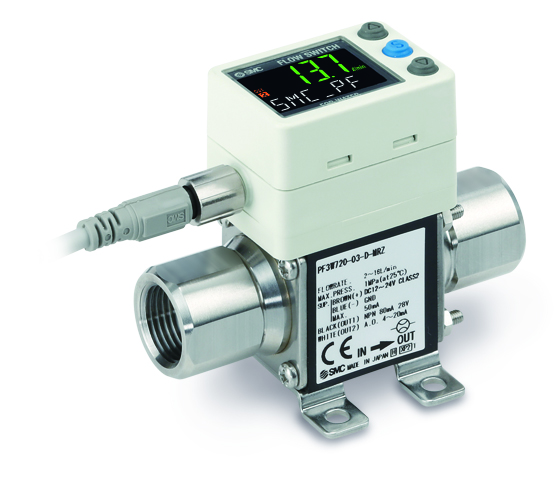

PF3W720-F04-FTN-M
Product number:
PF3W720-F04-FTN-M
Product information "PF3W720-F04-FTN-M"
• Applicable fluid: Water and ethylene glycol aqueous solution
• Rated flow range: 0.5 to 250 l/min
• 3-colour 2-screen rotatable display (integrated type)
• Repeatability: ±2.0 % F.S.
• Outputs: IO-Link, NPN/PNP and analogue/external input
• Enclosure: IP65
• In-built temperature sensor (-10 to 110 °C)
• Integrated and remote type available
• IP65
• Flow adjustment valve option
Product features
| Ambient temperature max.: | 50 °C |
|---|---|
| Anschluss: | G 1/2 |
| Betriebsdruck max.: | 1 MPa |
| Connection: | G 1/2 |
| Durchfluss max.: | 16 l/min |
| Durchfluss min.: | 2 l/min |
| Electrical output analogue: | 4 - 20 mA |
| Electrical output digital: | PNP |
| Elektrischer Ausgang Digital: | PNP |
| Elektrischer Ausgang analog: | 4 - 20 mA |
| Flow rate max.: | 16 l/min |
| Flow rate min.: | 2 l/min |
| IP Protection class: | IP65 |
| IP Schutzart: | IP65 |
| Karmanwirbel: | Ja |
| Media temperature max.: | 50 °C |
| Medientemperatur max.: | 50 °C |
| Operating pressure max.: | 1 MPa |
| Series: | PF3W7 |
| Spannung: | 12 - 24 VDC |
| Umgebungstemperatur max.: | 50 °C |
| Voltage: | 12 - 24 VDC |
| Wasser: | Ja |
| aqueous ethylene glycol solution: | yes |
| carman vortex: | yes |
| water: | yes |
| wässrige Äthylenglykollösung: | Ja |
