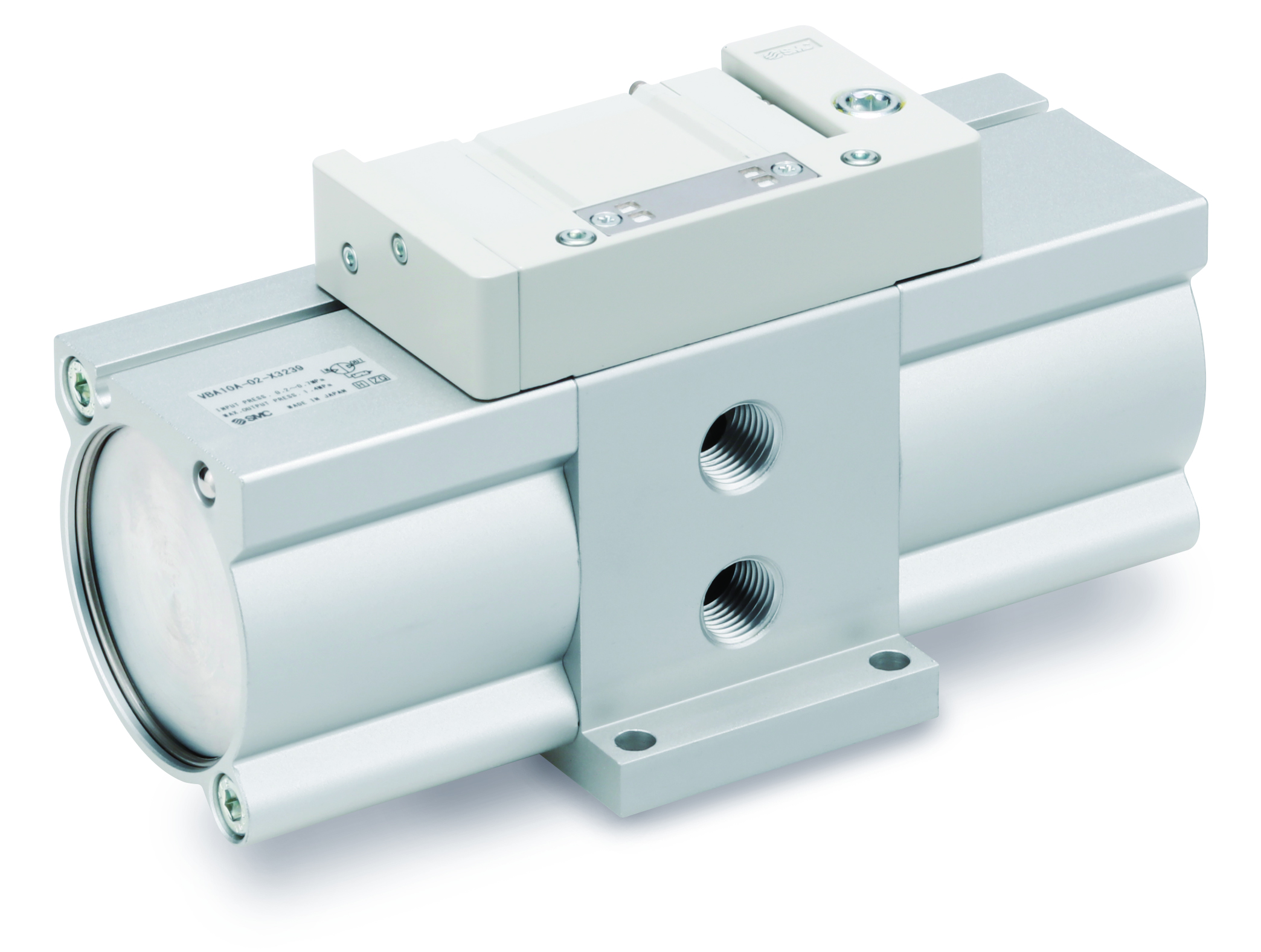

VBA10A-02G-X3239
Product number:
VBA10A-02G-X3239
Product information "VBA10A-02G-X3239"
• Medium: Compressed air
• Connection: 1/4
• Pressure amplification: VBA10A-X3239 = 1:2 VBA11A-X3239 = 1:4
• Pressure gauge connection: R1/8
• Installation position: Horizontal or vertical
Documents
Product features
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 2 °C |
| Anschluss: | R 1/4 |
| Betriebsdruck max.: | 0.7 MPa |
| Betriebsdruck min.: | 0.2 MPa |
| Connection: | R 1/4 |
| Druckluft: | Ja |
| Druckverstärkung 1:2: | Ja |
| Durchfluss max.: | 250 l/min |
| Einbaulage horizontal: | Ja |
| Einbaulage vertikal: | Ja |
| Flow rate max.: | 250 l/min |
| Manometeranschluss: | mit Manometer |
| Media temperature max.: | 50 °C |
| Media temperature min.: | 2 °C |
| Medientemperatur max.: | 50 °C |
| Medientemperatur min.: | 2 °C |
| Operating pressure max.: | 0.7 MPa |
| Operating pressure min.: | 0.2 MPa |
| Pressure gauge connection: | with gauge |
| Series: | VBA-X3239 |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | 2 °C |
| Voreingestelltes Druckverhältnis: | Ja |
| compressed air: | yes |
| fixed type: | yes |
| installation Vertical: | yes |
| installation horizontal: | yes |
| max. Ausgangsdruck 1.4MPa: | Ja |
| max. outlet pressure 1.4MPa: | yes |
| mit Energiesparfunktion: | Ja |
| pressure increase ratio 1:2: | yes |
| with enery saving function: | yes |
