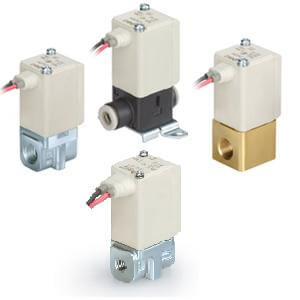

VDW22VAM
Product number:
VDW22VAM
Product information "VDW22VAM"
• For air, medium vacuum, water
• IP65 enclosure
• Compactness
• lightness
• Body materials: PPS resin, brass C37 and stainless steel
• Piping variations
Product features
| 2/2 way: | yes |
|---|---|
| 2/2-Wege: | Ja |
| Ambient temperature max.: | 50 °C |
| Ambient temperature min.: | -10 °C |
| Anschluss: | G 1/8 |
| Betriebsdruckdifferenz min.: | 0.4 MPa |
| Betriebsdruck max.: | 1 MPa |
| Connection: | G 1/8 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Durchfluss kv-Wert: | 0.18 Nl/min |
| Flow rate kv value: | 0.18 Nl/min |
| Gasket material: | NBR |
| Material: | Edelstahl |
| Media temperature max.: | 60 °C |
| Medientemperatur max.: | 60 °C |
| N.C: | yes |
| N.C.: | Ja |
| Operating pressure difference min.: | 0.4 MPa |
| Operating pressure max.: | 1 MPa |
| Series: | VDW |
| Spannung: | 24 VDC |
| Umgebungstemperatur max.: | 50 °C |
| Umgebungstemperatur min.: | -10 °C |
| Voltage: | 24 VDC |
| Wasser: | Ja |
| compressed air: | yes |
| electrically operated: | yes |
| elektrisch betätigt: | Ja |
| material: | stainless steel |
| water: | yes |
