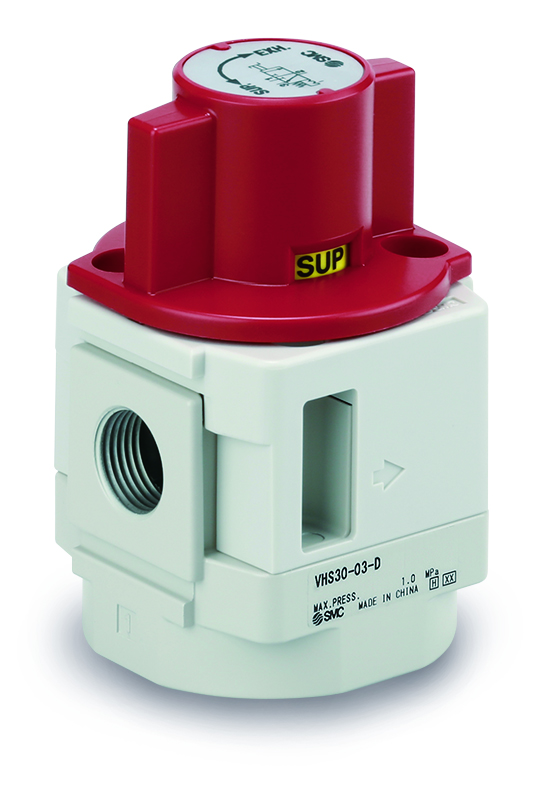

VHS40-F03-D
Product number:
VHS40-F03-D
Product information "VHS40-F03-D"
• Connection sizes 1/8, 1/4, 3/8, 1/2, 3/4 and 1
• Medium: Compressed air
• Ambient and media temperature: -5 to 60 °C
• Max. Operating pressure: 1.0 Mpa
• Rotation angle of rotary knob: 90
Product features
| 3/2 way: | yes |
|---|---|
| 3/2-Wege: | Ja |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -5 °C |
| Anschluss: | G 3/8 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | 0.1 MPa |
| Connection: | G 3/8 |
| Druckluft: | Ja |
| Durchfluss max.: | 4930 l/min |
| Flow rate max.: | 4930 l/min |
| Hand betätigt: | Ja |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -5 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -5 °C |
| N.C: | yes |
| N.C.: | Ja |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | 0.1 MPa |
| Series: | VHS-D |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -5 °C |
| built-in: | yes |
| compressed air: | yes |
| for AC40: | yes |
| manual operated: | yes |
| zu AC40: | Ja |
| zum Einbau: | Ja |
