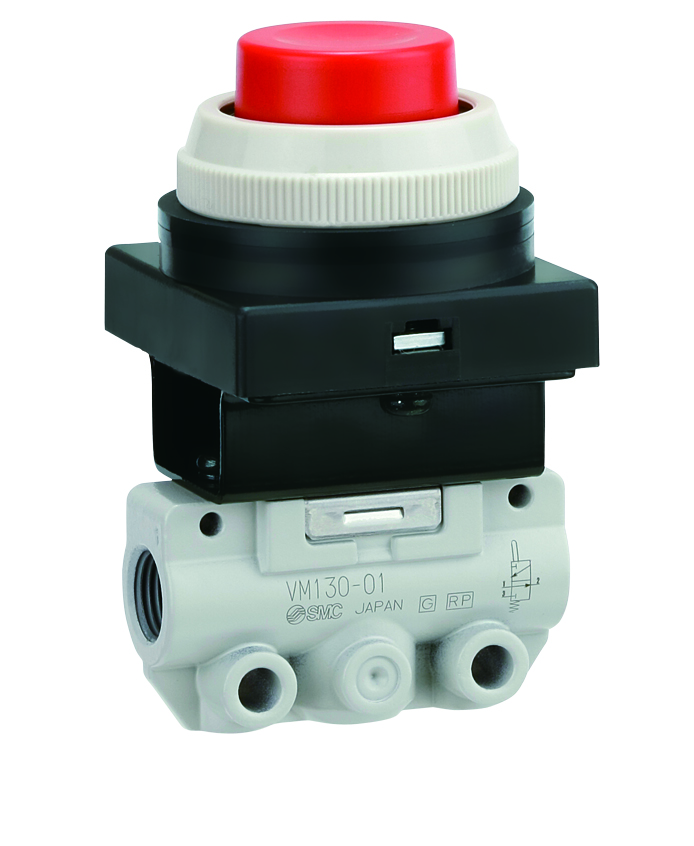

VM131-F01-01SA
Product number:
VM131-F01-01SA
Product information "VM131-F01-01SA"
• Compact and lightweight design for use in confined spaces
• High reliability due to robust poppet valve construction
• Wide variety of actuator styles to suit different applications
• Flexible piping and mounting options for easy integration
Product features
| 3/2 way: | yes |
|---|---|
| 3/2-Wege: | Ja |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -10 °C |
| Anschluss: | G 1/8 |
| Betriebsdruck max.: | 1 MPa |
| Betriebsdruck min.: | -0.1 MPa |
| Connection: | G 1/8 |
| Druckluft: | Ja |
| Druckluft gefiltert: | Ja |
| Durchfluss max.: | 125 l/min |
| Flow rate max.: | 125 l/min |
| Media temperature max.: | 60 °C |
| Media temperature min.: | -10 °C |
| Medientemperatur max.: | 60 °C |
| Medientemperatur min.: | -10 °C |
| N.C: | yes |
| N.C.: | Ja |
| Operating pressure max.: | 1 MPa |
| Operating pressure min.: | -0.1 MPa |
| Series: | VM100 |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -10 °C |
| compressed air: | yes |
| mechanically operated: | yes |
| mechanisch betätigt: | Ja |
| prefiltered: | yes |
