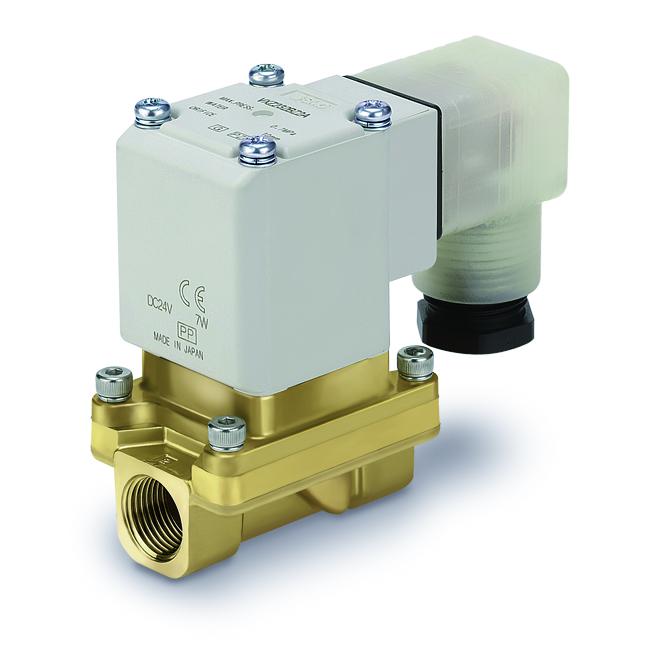

VXZ242FGA
Product number:
VXZ242FGA
Product information "VXZ242FGA"
• Body material: Messing, Stainless Steel
• Applicable fluid: water
• Enclosure: IP65
Product features
| 2/2 way: | yes |
|---|---|
| 2/2-Wege: | Ja |
| Ambient temperature max.: | 60 °C |
| Ambient temperature min.: | -20 °C |
| Anschluss: | G 1/2 |
| Betriebsdruckdifferenz min.: | 0.7 MPa |
| Betriebsdruck max.: | 1 MPa |
| Connection: | G 1/2 |
| Dichtung: | NBR |
| Druckluft: | Ja |
| Durchfluss kv-Wert: | 4.68 Nl/min |
| Flow rate kv value: | 4.68 Nl/min |
| Gasket material: | NBR |
| Material: | Messing |
| Media temperature max.: | 60 °C |
| Medientemperatur max.: | 60 °C |
| N.C: | yes |
| N.C.: | Ja |
| Nennweite: | 15 mm |
| Nominal size: | 15 mm |
| Operating pressure difference min.: | 0.7 MPa |
| Operating pressure max.: | 1 MPa |
| Series: | VXZ2#2 |
| Spannung: | 24 VDC |
| Umgebungstemperatur max.: | 60 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage: | 24 VDC |
| Wasser: | Ja |
| compressed air: | yes |
| electrically operated: | yes |
| elektrisch betätigt: | Ja |
| material: | brass |
| water: | yes |
| zero differential pressure: | yes |
| zwangsgesteuert: | Ja |
